Item NO.:
CBDⅢPayment:
T/T OR L/CProduct Origin:
Hefei, ChinaColor:
Orange / CustomizableShipping Port:
Shanghai / Nanjing / ShenzhenLead Time:
15 working daysOrder(MOQ):
1Goods Stock:
100Warranty:
1 yearBrand:
EFORKProduct Detail

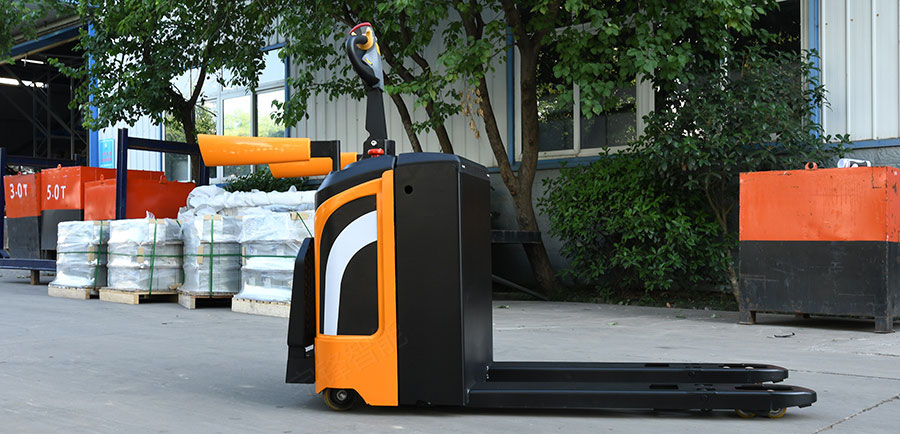

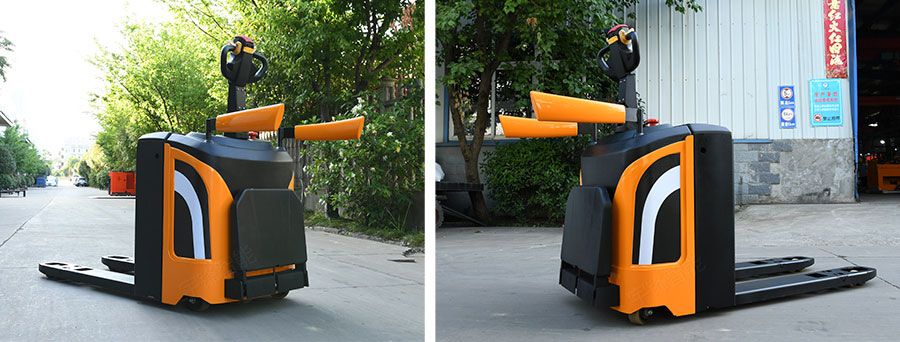

Product Name: 2022 Brand New Stand-on Type Pallet Trucks
Product Description:
➤Rated load: 2000kg-4000kg
➤Lifting height: 205mm
➤Famous brand control system, with multiple automatic protection systems
➤Vertical gearbox, multi-functional solution and flexible building block system, optimized gear meshing technology can reduce operating noise and provide customers with high performance and efficient use experience.
➤Equipped with a full AC drive system, it has the characteristics of small size, light weight, high efficiency, and maintenance-free.
Parameters:
| Electric Pallet Truck (Standing Type) CBDⅢ | ||||||
| Characteristic | 1.1 | Model | CBD20Ⅲ | CBD30Ⅲ | CBD40Ⅲ | |
| 1.2 | Power | Electric | Electric | Electric | ||
| 1.3 | Operation mode | Standing type | Standing type | Standing type | ||
| 1.4 | Steering mode | EPS | EPS | EPS | ||
| 1.5 | Rated load capacity | Q(t) | 2000 | 3000 | 4000 | |
| 1.6 | Load center | C(mm) | 600 | 600 | 600 | |
| 1.7 | Wheelbase | Y(mm) | 1380 | 1380 | 1380 | |
| Weight | 2.1 | Self-weight with battery | kg | 690 | 710 | 755 |
| Wheels, chassis | 3.1 | Wheel type | PU | PU | PU | |
| 3.2 | Front Wheel | ∅×w(mm) | Φ80*80 | Φ80*80 | Φ80*80 | |
| 3.3 | Rear wheel | ∅×w(mm) | Φ230*75 | Φ230*75 | Φ230*75 | |
| 3.4 | Balance wheel | ∅×w(mm) | Φ125*50 | Φ125*50 | Φ125*50 | |
| Dimension | 4.1 | Max. Lifting height | H（mm） | 205 | 205 | 210 |
| 4.2 | The height of the fork surface after the fork is lowered | H1(mm) | 85 | 85 | 90 | |
| 4.3 | Fork outer width | S1（mm） | 685/540 | 685/540 | 685 | |
| 4.4 | Vehicle body length (pedal folded / unfold) | L（mm） | 1825/2240 | 1825/2240 | 1825/2240 | |
| 4.5 | Vehicle body width | S(mm) | 760 | 760 | 760 | |
| 4.6 | Fork size | s/e/l(mm) | 55/175/1150 | 55/175/1150 | 60/180/1150 | |
| 4.7 | Stacking channel width, pallet 1000×1200 (1200 placed across forks) | Ast(mm) | 2270 | 2270 | 2270 | |
| 4.8 | Min. turning radius | Wa(mm) | 1670 | 1670 | 1670 | |
| Performance | 5.1 | Driving speed, no load / full load | km/h | 6/5.5 | 6/5 | 6/5.5 |
| 5.2 | Lifting speed, no load / full load | m/s | 0.043/0.040 | 0.043/0.040 | 0.043/0.040 | |
| 5.3 | Descent speed, no load / full load | m/s | 0.035/0.445 | 0.035/0.445 | 0.035/0.445 | |
| 5.4 | Max. gradeability, no load/full load | ％ | 15/8 | 15/6 | 15/6 | |
| 5.5 | Service brake | Electromagnetic | Electromagnetic | Electromagnetic | ||
| Motor | 6.1 | Driving motor power | kw | 1.5 | 1.5 | 2.5 |
| 6.2 | Lifting motor power | kw | 0.8 | 0.8 | 2.2 | |
| 6.3 | Battery | Lead-acid | Lead-acid | Lead-acid | ||
| 6.4 | Battery voltage / capacitance | V/Ah | 24V210Ah | 24V210Ah | 24V270Ah | |
| 6.5 | Charger | 24V/30Ah | 24V/30Ah | 24V/30Ah | ||
| Others | 7.1 | Driving control mode | AC | AC | AC | |
| 7.2 | The noise level in the driver's ear is based on EN12053 | dB(A) | 75 | 75 | 75 | |
| The data is for reference only, and the details shall be subject to the actual vehicle. | ||||||
