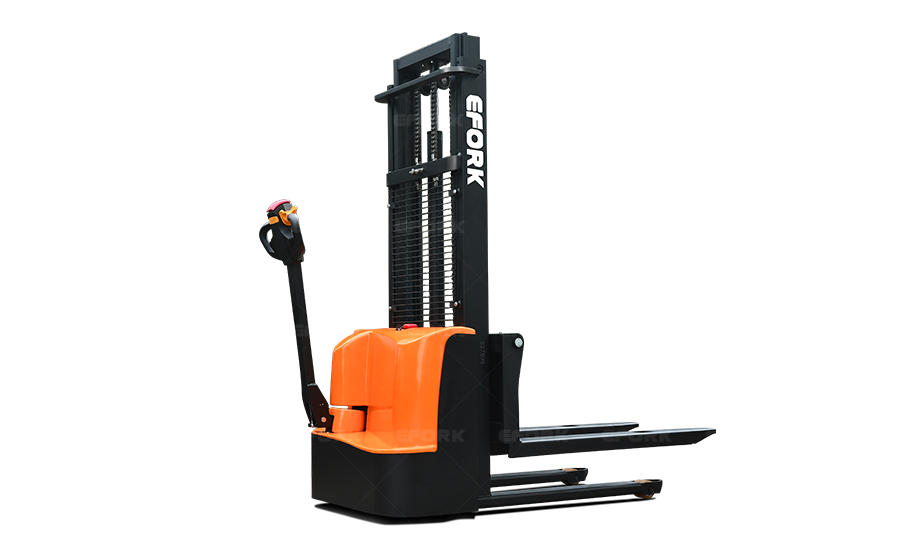

Autoefork Walkie Type Powered Pallet Stacker

Walkie type electric stacker is an economical material handling and stacking equipment with manual push-pull and electric lifting. It is widely used in factory workshops, warehouses, distribution centers, ports, stations, airports, freight yards and other places.

Item NO.:
CDDC10/ CDDC15
Payment:
T/T OR L/C
Product Origin:
Hefei, China
Color:
Orange / Customizable
Shipping Port:
Shanghai / Nanjing / Shenzhen
Order(MOQ):
1
Goods Stock:
500
Warranty:
1 year
Brand:
EFORK

Inquiry now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

New Products

Product Detail

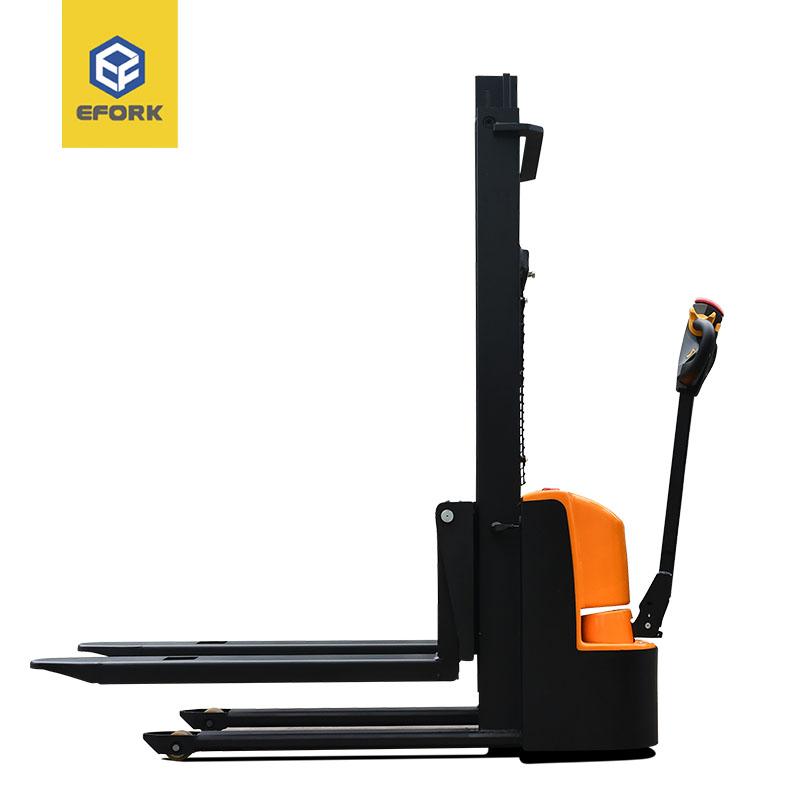

Product Name: Autoefork Walkie Type Powered Pallet Stacker

Autoefork walk-behind electric stacker is a machine that can be flexibly handled in warehouses, workshops and other places. It is used with pallets, with a maximum load of 1.5 tons and a maximum lifting height of 4 meters.

Product Description

➤ Built-in high-energy sealed battery, long-term use without maintenance, no need to add water during the period of life.
➤ Compact size, easy to display, and saving working space. It can successfully go through even in a small channel.
➤ Bias control can greatly improve the working vision and avoid collision.
➤ Long handle operation, greatly reduces the operating force make the operation more portable.
➤ Emergency power switch
➤ Multi-function handle and integrated control ( acceleration, horn, emergency direction, lift button)

Parameters

Electric Pallet Stacker （Walkie Type) CDDC
Characteristics	1.1	Model No.		CDDC10-16	CDDC10-25	CDDC10-30	CDDC15-25	CDDC15-30
	1.2	Power Type		Electric	Electric	Electric	Electric	Electric
	1.3	Operation Type		Walkie Type	Walkie Type	Walkie Type	Walkie Type	Walkie Type
	1.4	Capacity	Q(Kg)	1000	1000	1000	1500	1500
	1.5	Load Center	C(mm)	500	500	500	500	500
	1.6	Bearing Distance	X(mm)	720	720	720	720	720
	1.7	Wheelbase	Y(mm)	1197	1197	1197	1197	1197
Total Weight	2.1	Total Weight（with Battery)	kg	506	546	566	626	656
Wheels,Chassis	3.1	Wheel Type		PU	PU	PU	PU	PU
	3.2	Front Wheel	Ф×w(mm)	Φ80×70	Φ80×70	Φ80×70	Φ80×70	Φ80×70
	3.3	Driving Wheel	Ф×w(mm)	Φ210×70	Φ210×70	Φ210×70	Φ210×70	Φ210×70
	3.4	Balance Wheel	Ф×w(mm)	Ф125×50	Ф125×50	Ф125×50	Ф125×50	Ф125×50
	3.5	Front Wheel Base	b10(mm)	515.5	515.5	515.5	515.5	515.5
	3.6	Rear Wheel Base	b11(mm)	520	520	520	520	520
Dimension	4.1	Mast Lowered Height	h1(mm)	2075	1825	2075	1825	2075
	4.2	Lift Height	h3(mm)	1600	2500	3000	2500	3000
	4.3	Max. Height When Lifting	h4(mm)	2075	3037	3537	3037	3537
	4.4	Fork Clearence when Mast Lowered	h13(mm)	85	85	85	85	85
	4.5	Overall Length	l2(mm)	1785	1785	1785	1785	1785
	4.6	Overall Width	b1(mm)	800	800	800	800	800
	4.7	Fork Size	s/e/l(mm)	65/165/1150	65/165/1150	65/165/1150	65/165/1150	65/165/1150
	4.8	Fork Spread	b5(mm)	680-337	680-337	680-337	680-337	680-337
	4.9	Min. Ground Clearence	m2(mm)	15.3	15.3	15.3	15.3	15.3
	4.10	Aisle Width for Pallet 1000*1200 Crossaway	Ast(mm)	2235	2235	2235	2235	2235
	4.11	Min. Turning Radius	Wa(mm)	1380	1380	1380	1380	1380
Performance	4.12	Max. Travel Speed(Unload/Load)	km/h	4/3.5	4/3.5	4/3.5	4/3.5	4/3.5
	4.13	Lifting Speed(Unload/Load)	m/s	0.101/0.095	0.101/0.095	0.101/0.095	0.101/0.092	0.101/0.092
	5.1	Decnet Speed(Unload/Load)	m/s	0.096/0.112	0.096/0.112	0.096/0.112	0.096/0.115	0.096/0.115
	5.2	Max. Climbing Ability (Unload/Load)	％	6/5	6/5	6/5	6/4.5	6/4.5
	5.3	Brake Type		Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
Motor,Charger	6.1	Driving Motor	kw	0.75	0.75	0.75	0.75	0.75
	6.2	Lifting Motor	kw	2.2	2.2	2.2	2.2	2.2
	6.3	Battery Type		Lead Acid	Lead Acid	Lead Acid	Lead Acid	Lead Acid
	6.4	Battery Vol./Capacity	V/Ah	2×12V/80Ah	2×12V/80Ah	2×12V/80Ah	2×12V/80Ah	2×12V/80Ah
	6.5	Charger	V/A	24V/10A	24V/10A	24V/10A	24V/10A	24V/10A
Other	7.1	Control Model		DC	DC	DC	DC	DC
The data is for reference only, and the details shall be subject to the actual vehicle.
