The series forklift is a pallet truck that is mainly used for plane point-to-point handling.
● Horizontal handling of large tonnage goods;
●Middle and long distance handling;
● Frequent reversing occasions, such as loading and unloading on large trucks.
Item NO.:
CBD60Payment:
T/T OR L/CProduct Origin:
ChinaColor:
Green/ RedShipping Port:
NANJING / SHANGHAILead Time:
15-20daysWarranty:
1 YearBrand:
EFORKProduct Detail

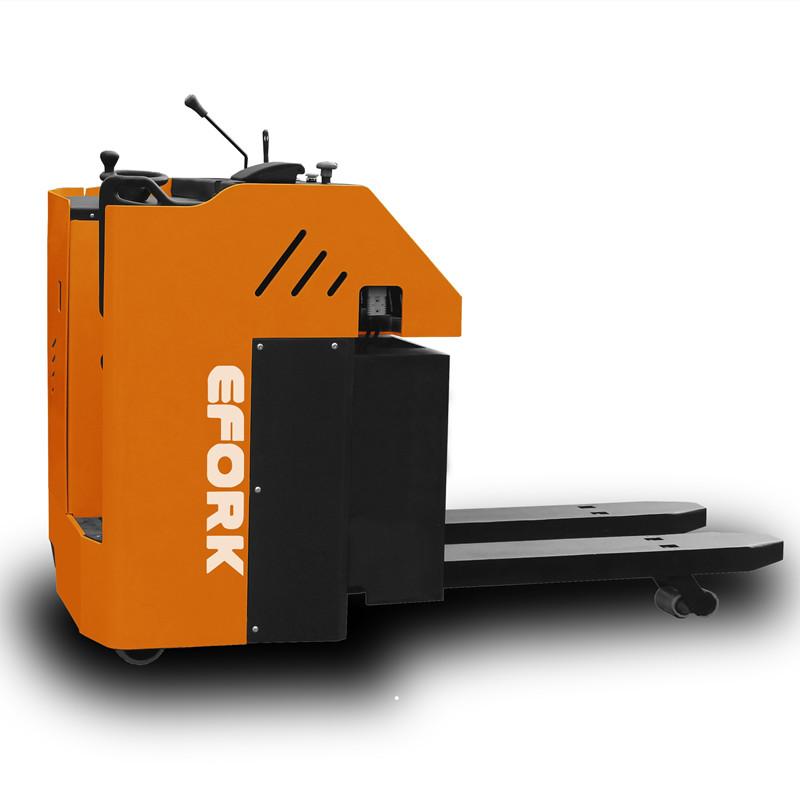

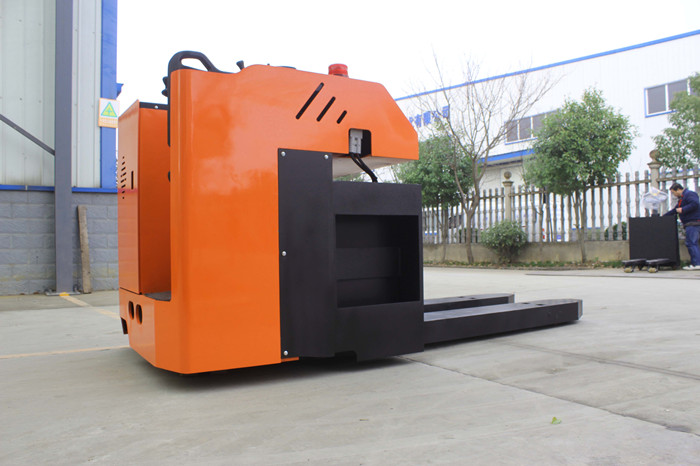

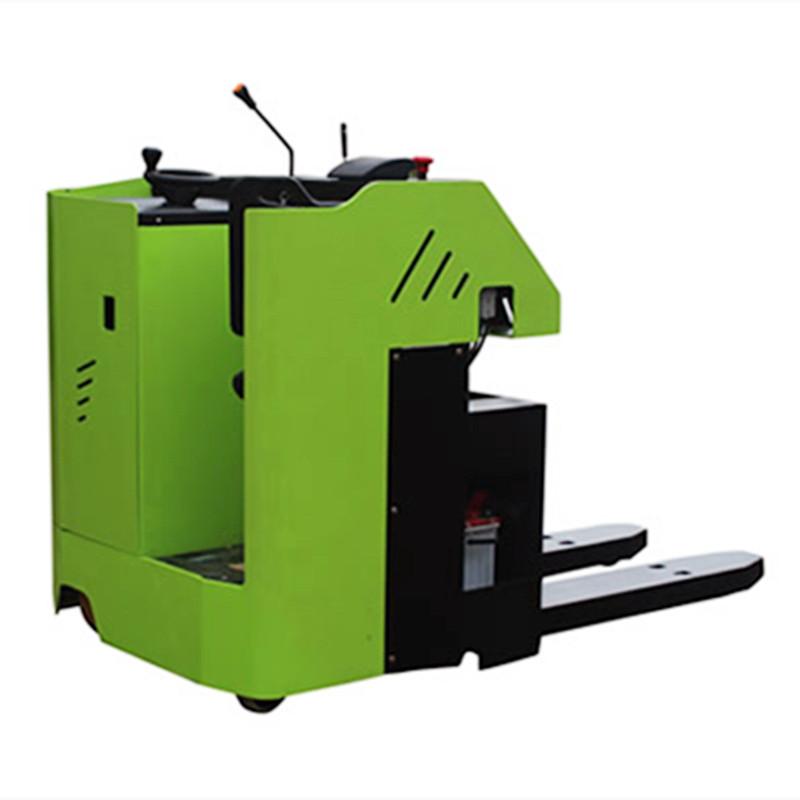

Product Advantage:CBD Series Electric pallet truck 5.0/6.0/7.0/8.0t
High performance Autoefork CBD series electric pallet trucks are perfect for your warehouse requirement.
Features:

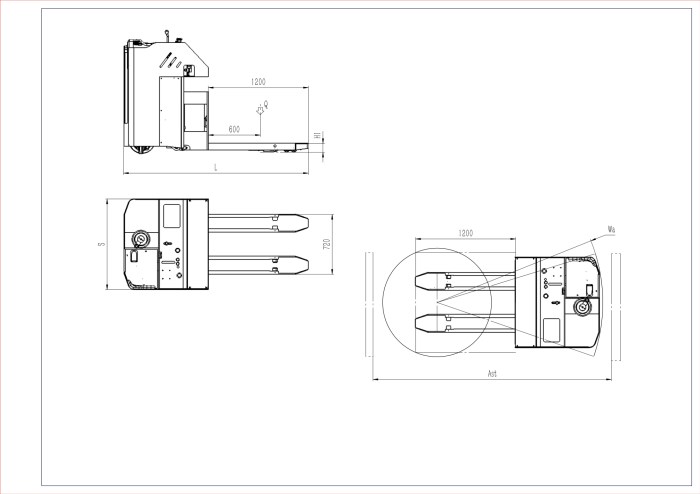

Basic parameters:
|
Name |
Electric pallet truck standing type |
|
|
Operation Type |
Standing type |
|
|
Model No. |
UNIT |
CBD60 |
|
Power Type |
|
Full Electric |
|
LoadCapacity |
Kg |
6000 |
|
Max lifting height |
H（mm） |
240 |
|
Load center |
C（mm） |
600 |
|
Wheel type |
|
Polyurethane tire |
|
Forksize |
（mm） |
1200*240 |
|
Fork outside width |
(mm) |
720 |
|
Minimum ground clearance |
H1(mm) |
120 |
|
Overall length |
L（mm） |
2370 |
|
Overall width |
S(mm) |
1090 |
|
Max.Walking Speed |
Km/h |
4/5 |
|
Grade ability |
% |
6 |
|
Drive Wheel |
mm |
Ø343*114 |
|
Wheel Front |
mm |
Ø80*110 |
|
Balance Wheel |
mm |
Ø180*76 |
|
Battery capacity |
V/Ah |
48/300 |
|
Driving Motor |
Kw |
4.5 |
|
Lifting Motor |
Kw |
6.3 |
|
Beake |
|
Electromagnetic |
|
Drive Controlling Type |
|
AC |
|
Walking Adjustable Type |
|
Holzer accelerator |
