Scissor Fork Double Deep Reach Truck

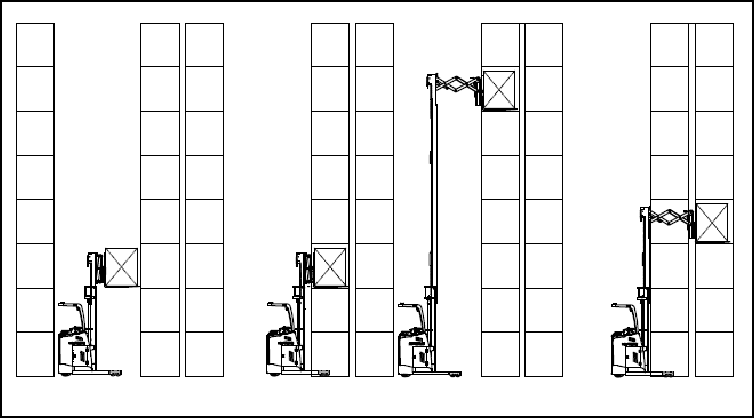

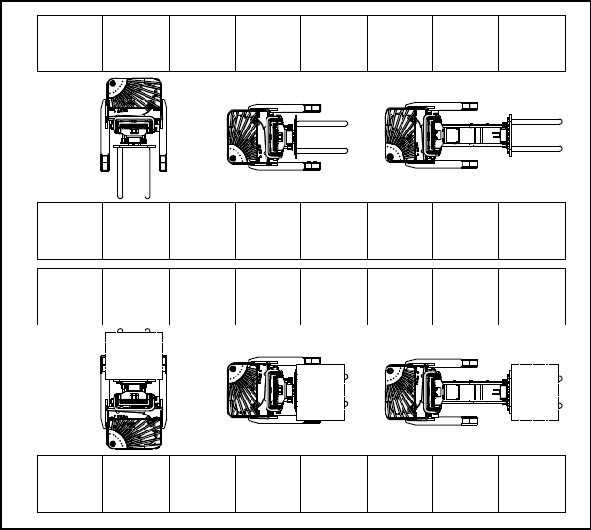

Double scissors front extension arms are equipped as standard, and the goods can move back and forth through the scissors fork telescopic mechanism. When the fork extends, it can easily deal with the non-standard pallet, close the pallet and close the shelf. When the fork retracts, it is like the wide fork leg stacker, which can operate flexibly in the narrow channel.

Item NO.:
CQD15X-45
Payment:
T/T OR L/C
Product Origin:
China
Color:
Green/Red/Orange/Customized
Shipping Port:
Shanghai / Nanjing / Shenzhen
Goods Stock:
100
Warranty:
1 Year
Brand:
EFORK

Inquiry now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

New Products

Product Detail

Product Name: Scissor Fork Double Deep Reach Truck

The intelligent integrated control handle of the 1.5T telescopic reach forklift is convenient and comfortable to operate, and the parking electromagnetic brake can realize the automatic parking function on the slope and level. It has a small turning radius, convenient steering and flexible maneuverability.

Product Advantage:

1. Full boot cover sealing plate design. Deep consideration, convenient maintenance and repair;
2. The driving cabin door is opened, and the driving structure, electric control mode, wiring structure and steering layout are clear at a glance;
3. The lower end of the battery is guided by a roller type to increase the force-bearing surface to ensure that the battery is evenly stressed.
4. Coordinated process holes and process grooves make it easy to replace without losing beauty.

Configuration:

1. 48V AC control system;
2. American Curtis controller;
3. American Curtis multi-function instrument;
4. Hall type accelerating and reversing integrated control handle;
5. Suspension self-adjusting rear axle structure;
6. Double scissors attachment structure;
7. Battery side outlet, standard battery trolley;
8. Imported hydraulic seal

Parameters:

Characteristic	1.1	Model No.		CQD15X-45
	1.2	Power type		Electric
	1.3	Operation type		Stand Type
	1.4	Load capacity	Q(Kg)	1500
	1.5	Min.bearing distance	X(mm)	380
	1.6	Load center	C(mm)	500
Weight	2.1	Total weight with battery	kg	3540
Wheel	3.1	Wheel type		PU
	3.2	Drive wheel	∅×w(mm)	Ф382*142
	3.3	Front wheel	∅×w(mm)	Ф145*100
	3.4	Balance wheel	∅×w(mm)	Ф180*76
	3.5	Number of wheels (Front /Drive× / Balance wheel)		4/1×/2
	3.6	Wheel tread,front wheel	b10(mm)	1562
Dimension	4.1	Mast lowered height	h1(mm)	2854
	4.2	Max.height when lifting	h4(mm)	4970（5284 Total height）
	4.3	Height of overhead guards	h14(mm)	2280
	4.4	Overall length(fork forward/back)	l2(mm)	2410/1977
	4.5	Overall width	b1(mm)	1390
	4.6	Fork size	s/e/l(mm)	351221070
	4.7	Fork adjustment size	b5(mm)	210-680
	4.8	Min.ground clearance	m2(mm)	72
	4.9	Aisle Width for Pallet 1000*1200 Crossaway	Ast(mm)	2835
	4.10	Min.turning radius	Wa(mm)	1854
	4.11	Telescopic stroke of fork	（mm）	1200
Performance	5.1	Max.travel speed(unload/load)	km/h	7/6.5
	5.2	Lifting speed(unload/load)	m/s	0.330/0.245
	5.3	Lowering speed(unload/load)	m/s	0.260/0.325
	5.4	Brake type		Electromagnetism
Motor,Charger	6.1	Driving motor	kw	4.5
	6.2	Lifting motor	kw	6.3
	6.3	Battery type		Lead Acid
	6.4	Battery capacity	V/Ah	48V/300
	6.5	Charger	V/Ah	48V/40A
Other	7.1	Drive controlling type		Hall accelerator
				The data is for reference only, and the details shall be subject to the actual vehicle.
