Item NO.:
CQD-AJPayment:
30% TT in advance, 70% before deliveryProduct Origin:
AnhuiColor:
Orange/Blue/RedShipping Port:
shanghaiLead Time:
45working days after we receive depositOrder(MOQ):
1Goods Stock:
50Product weight:
1850Warranty:
one yearBrand:
EFORKProduct Detail
Product Name:Small Reach Truck Forklift AGV
Product parameters
Model: CQD * AJ
Navigation mode: laser navigation
Body size: 2270 * 1098 * 2350mm(subject to design)
Accuracy in place: ± 10mm
Lifting height: 1600mm-5000mm
Rated load: 1000kg-2000kg

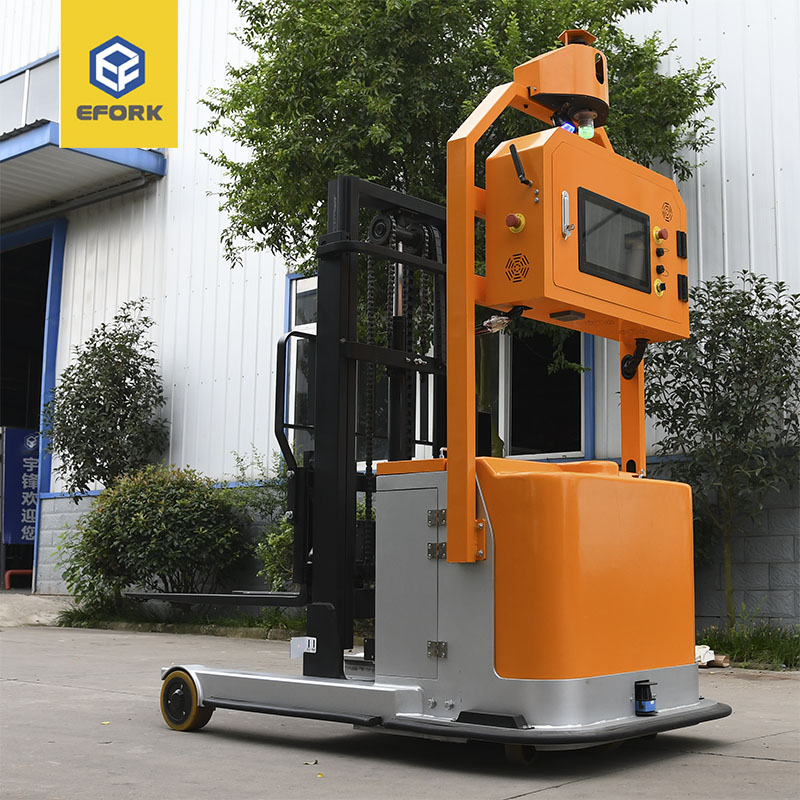

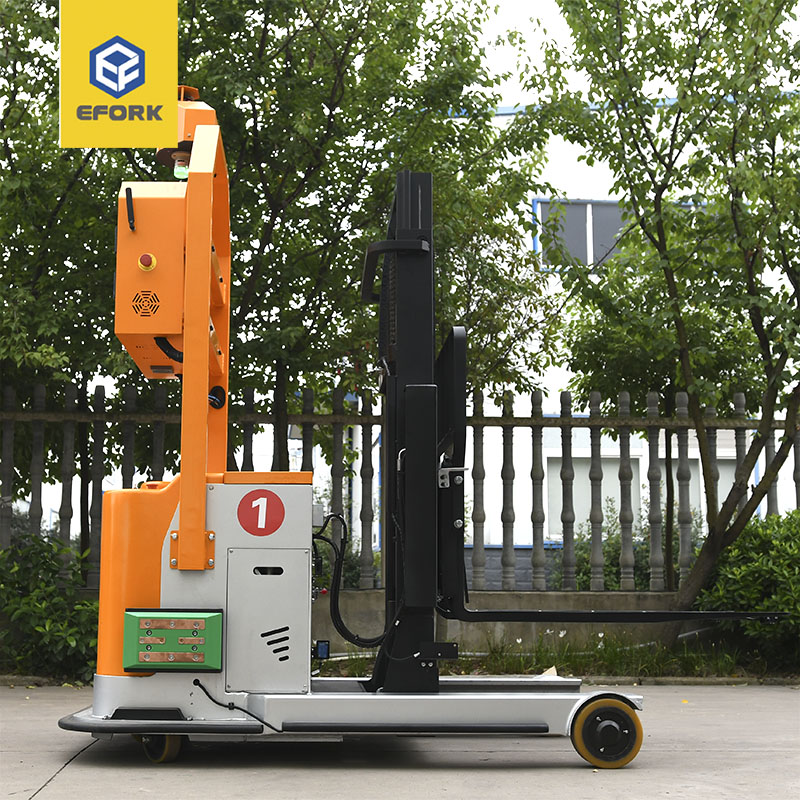

Product Display
Product Data
| CQD*AJ01-16 | |||
| Basic parameters |
Dimension (including fork |
mm | L2270*W1098*H2350 |
| self weight | kg | 3000 | |
| Navigation mode | Laser navigation | ||
| control mode | intelligent motion control system | ||
| Lift height | mm | 1600 | |
| Rated load | kg | 1000~2000 | |
| Load center） | mm | 500 | |
|
Sports performance |
Running speed | m/min | 40 |
| Operating temperature | ℃ | -10℃-40℃ | |
| Orientation accuracy | mm | ±10mm | |
| Accuracy of stop | mm |
±20mm (Secondary positioning is needed for higher accuracy) |
|
| Direction of travel | two-way | ||
| Reach distance | mm | 500/600/730 | |
| Lifting speed (loaded / unloaded) | mm/s | 100/110 | |
|
Descent speed (loaded / unloaded) |
mm/s | 120/140 | |
| （Minimum turning radius (excluding AST)） | mm | 1750 | |
|
（Stacking channel (1200 fork * 1000)） |
mm | 3000(Contain Ast) | |
|
Performance of lithium battery |
Rated voltage | V | 24 |
| electric capacity | Ah | 160(Customizable) | |
|
（Number of charge discharge cycles） |
Pc | 1500 | |
| Endurance time | h | It runs for about 8 hours | |
| Charging time | h | 1-2 | |
|
safety protection |
Laser obstacle avoidance | （YES） | |
| Pallet in place inspection | （YES） | ||
|
Inspection of fork tooth infrared sensor |
（YES） | ||
| Emergency stop button | （YES） | ||
| Sound and light alarm | （YES） | ||
| Mechanical collision avoidance | （YES） | ||
IPv6 network supported
