The 3-wheel electric counterbalanced forklift has power and mobility equivalent to a four-wheel counterbalanced forklift but with the turning radius as small as a reach truck.
Item NO.:
CPDAPayment:
T/T OR L/CProduct Origin:
Hefei, ChinaColor:
Orange / CustomizableShipping Port:
Shanghai / Nanjing / Shenzhen / etc.Lead Time:
25 working daysOrder(MOQ):
1Goods Stock:
50Warranty:
1 yearBrand:
EFORKProduct Detail
Product Name: 1000KG 1500KG 4500MM Three Wheels Electric Counterbalance Forklift Truck
Autoefork three-wheel electric forklift has a small size, light weight and small turning radius, which are suitable for operations in narrow passages and limited spaces.
Video
Product Description
American Curtis control system
ZF gearbox
EPS
AC drive
Lifting overload protection
Solid tires for front wheels
Mast tilting forward and backward function
Parameters
| 3-Wheel Electric Forklift CPDA | |||||
| Characteristics | 1.1 | Model No. | CPD10A | CPD15A | |
| 1.2 | Power Type | Electric | Electric | ||
| 1.3 | Operation Type | Seated Type | Seated Type | ||
| 1.4 | Capacity | Q(Kg) | 1000 | 1500 | |
| 1.5 | Load Center | C(mm) | 500 | 500 | |
| 1.6 | Front Overhang | X(mm) | 196 | 196 | |
| 1.7 | Wheelbase | Y(mm) | 1130 | 1130 | |
| Total Weight | 2.1 | Total Weight（with Battery) | kg | 1700 | 2150 |
| Wheels,Chassis | 3.1 | Wheel Type | Front Solid Tires/Rear PU Tires | ||
| 3.2 | Driving Wheel | ∅×w(mm) | ∅230×75 | ∅230×75 | |
| 3.3 | Front Wheel | ∅×w(mm) | ∅305×127 | ∅305×127 | |
| 3.4 | Front Wheel Base | mm | 752 | 752 | |
| Dimension | 4.2 | Mast Lowered Height | h1(mm) | 2035 | 2035 |
| 4.3 | Free Lift Height | h2(mm) | 0 | 0 | |
| 4.4 | Lifting height | h3(mm) | 3000 | 3000 | |
| 4.5 | Max. Height When Lifting | h4(mm) | 3918 | 3918 | |
| 4.6 | Height of Overhead Guards | h13(mm) | 1930 | 1930 | |
| 4.7 | Fork Clearence when Mast Lowered | h(mm) | 35 | 35 | |
| 4.8 | Overall Length（Without Fork) | l2(mm) | 1587 | 1587 | |
| 4.9 | Overall Width | b1(mm) | 850 | 850 | |
| 4.10 | Fork Size | s/e/l(mm) | 35/100/1070 | 35/100/1070 | |
| 4.11 | Fork Spread | b5(mm) | 210-566 | 210-566 | |
| 4.12 | Min. Ground Clearence | m2(mm) | 35 | 35 | |
| 4.13 | Aisle Width for Pallet 1000*1200 Crossaway | Ast(mm) | 2931 | 2931 | |
| 4.14 | Min. Turning Radius | Wa(mm) | 1425 | 1425 | |
| Performance | 5.1 | Max. Travel Speed(Unload/Load) | km/h | 5.2/5 | 5.2/5 |
| 5.2 | Lifting Speed(Unload/Load) | m/s | 0.135/0.095 | 0.135/0.090 | |
| 5.3 | Decnet Speed(Unload/Load) | m/s | 0.085/0.120 | 0.085/0.120 | |
| 5.8 | Max. Climbing Ability (Unload/Load) | ％ | 8/6 | 8/6 | |
| 5.1 | Brake Type | Hydraulic+Electromagnetic | |||
| Motor,Charger | 6.1 | Driving Motor | kw | AC 1.5 | AC 2.5 |
| 6.2 | Lifting Motor | kw | DC 3.0 | DC 3.0 | |
| 6.3 | Battery Type | Lead Acid | Lead Acid | ||
| 6.4 | Battery Vol./Capacity | V/Ah | 24V/270Ah | 24V/300Ah | |
| 6.5 | Charger | V/A | 24V/40A | 24V/40A | |
| Other | 7.1 | Control Model | AC | AC | |
| The data is for reference only, and the details shall be subject to the actual vehicle. | |||||

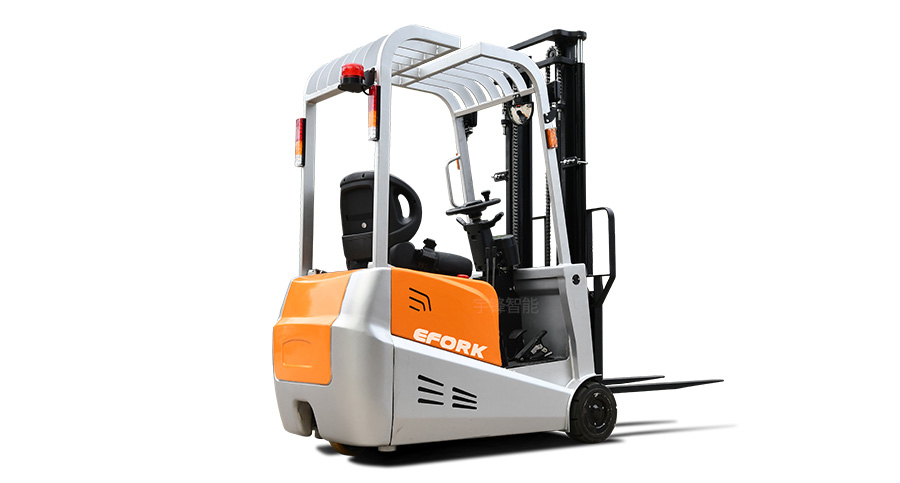

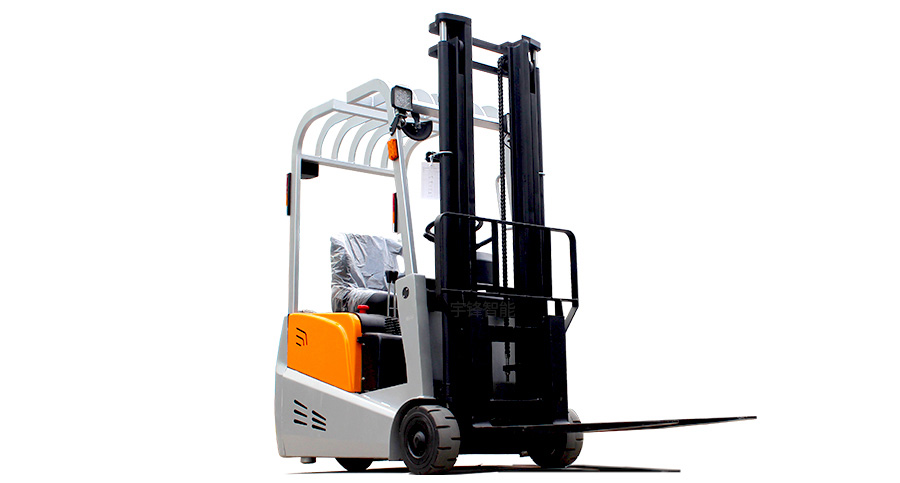

Pictures
