2000kg 3000kg 3m 6m 4 Wheel Electric Forklift Trucks

The four-wheel counterbalance forklift is the material and technical basis to realize the mechanization and automation of loading and unloading, and is one of the means to realize the rationalization, efficiency, and labor saving of loading and unloading.

Item NO.:
CPD
Payment:
T/T OR L/C
Product Origin:
Hefei, China
Color:
Orange / Customizable
Shipping Port:
Shanghai / Nanjing / Shenzhen / etc.
Lead Time:
30 working days
Order(MOQ):
1
Goods Stock:
50
Warranty:
1 year
Brand:
EFORK

Inquiry now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

New Products

Product Detail

Product Name: 2000kg 3000kg 3m 6m 4 Wheel Electric Forklift Trucks

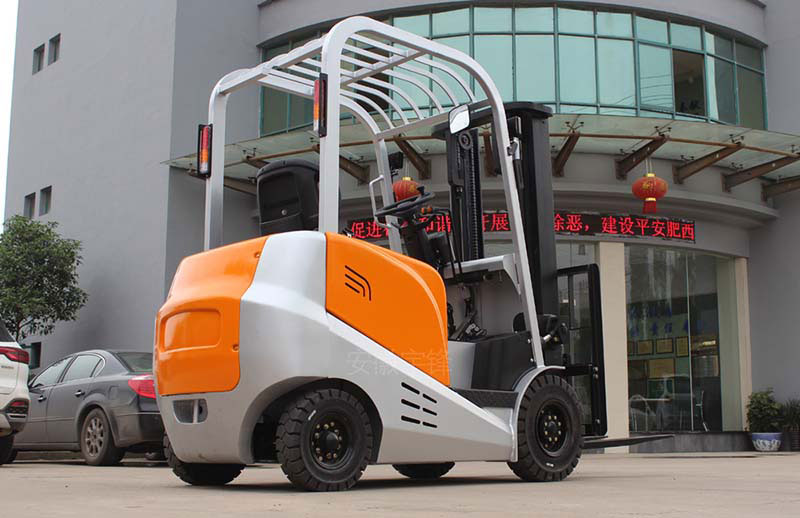

Autoefork four-wheel electric counterbalanced forklift, with a maximum lifting height of more than 6 meters and a maximum load of 3 tons, is suitable for indoor and outdoor loading and unloading.

Video

Product Description

Loading capacity: 1500kg-3000kg
Lifting height: 1600-6000mm
Italian SME control system
Integrated structure of H-type bridge box
Wide angle rearview mirror
LED headlight
Full AC
Solid tires
Mast tilting forward and backward function

Parameters

4-Wheel Electric Forklift CPD
Characteristics	1.1	Model No.		CPD15	CPD20	CPD25	CPD30
	1.2	Power Type		Electric	Electric	Electric	Electric
	1.3	Operation Type		Seated Type	Seated Type	Seated Type	Seated Type
	1.4	Capacity	Q(kg)	1500	2000	2500	3000
	1.5	Load Center	C(mm)	500	500	500	500
	1.6	Front Overhang	X(mm)	447	447	495	495
	1.7	Wheelbase	Y(mm)	1450	1450	1600	1600
Total Weight	2.1	Total Weight（with Battery)	kg	2850	3260	4210	4410
Wheels,Chassis	3.1	Wheel Type		Inflatable Tires	Solid Tires	Solid Tires	Solid Tires
	3.2	Front Wheel		6.50-10	6.50-10	23×9-10	23×9-10
	3.3	Driving Wheel		5.00-8	5.00-8	18×7-8	18×7-8
	3.4	Front Wheel Base	b10(mm)	910	910	970	970
	3.5	Rear Wheel Base	b11(mm)	930	930	950	950
Dimension	4.1	Mast Lowered Height	h1(mm)	2095	2095	2095	2095
	4.2	Free Lift Height	h2(mm)	80	80	80	80
	4.3	Lifting height	h3(mm)	3000	3000	3000	3000
	4.4	Max. Height When Lifting	h4(mm)	4110	4110	4110	4110
	4.5	Height of Overhead Guards	h14(mm)	2190	2190	2185	2185
	4.6	Fork Clearence when Mast Lowered	h13(mm)	40	40	45	45
	4.7	Mast/Fork Title Angle	°	6/10	6/10	6/12	6/12
	4.8	Overall Length（Without Fork)	l2(mm)	2330	2330	2529	2529
	4.9	Overall Width	b1(mm)	1105	1105	1160	1160
	4.10	Fork Size	s/e/l(mm)	35/100/1070	40/122/1070	40/122/1070	45/125/1070
	4.11	Fork Spread	b5(mm)	244-1042	244-1042	244-1020	244-1020
	4.12	Min. Ground Clearence	m2(mm)	130	130	130	130
	4.13	Aisle Width for Pallet 1000*1200 Crossaway	Ast(mm)	3857	3857	4015	4015
	4.14	Aisle Width for Pallet 1200*1000 Crossaway	Ast(mm)	4015	4015	4170	4170
	4.15	Min. Turning Radius	Wa(mm)	2090	2090	2200	2200
Performance	5.1	Max. Travel Speed(Unload/Load)	km/h	12/11	12/11	12/11	12/11
	5.2	Lifting Speed(Unload/Load)	m/s	0.205/0.221	0.196/0.214	0.210/0.215	0.193/0.212
	5.3	Decnet Speed(Unload/Load)	m/s	0.350/0.260	0.365/0.240	0.365/0.240	0.365/0.240
	5.4	Max. Climbing Ability (Unload/Load)	%	20/15	20/15	20/12	20/12
	5.5	Brake Type		Hydraulic	Hydraulic	Hydraulic	Hydraulic
Motor,Charger	6.1	Driving Motor	kw	8	8	11	11
	6.2	Lifting Motor	kw	8.6	8.6	12	12
	6.3	Battery Type		Lead Acid	Lead Acid	Lead Acid	Lead Acid
	6.4	Battery Vol./Capacity	V/Ah	48V400Ah	48V450Ah	48V480Ah	48V550Ah
	6.5	Charger	V/A	48V/50A	48V/60A	48V/60A	48V/70A
Other	7.1	Control Model		AC	AC	AC	AC
The data is for reference only, and the details shall be subject to the actual vehicle.
