Electric reach truck 24V Loading capacity 1500-2000 Kg Lifting height 6000 mm
Item NO.:
CQD15APayment:
T/T OR L/CProduct Origin:
ChinaColor:
Green/ RedShipping Port:
NANJING / SHANGHAILead Time:
15-20daysWarranty:
1 YearBrand:
EFORKProduct Detail

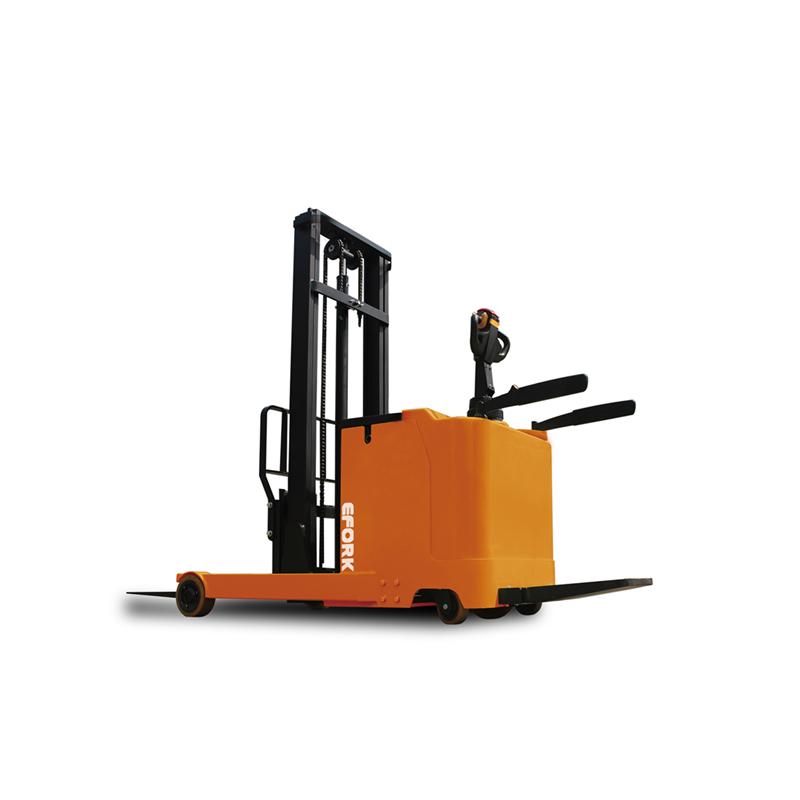

Product Name:24V Small Standing-On Drive Reach Truck
Product Advantage:
The Electric Reach Truck with large forward stroke brings smaller channel experience, battery electric drive.
●Horizontal handling and stacking of medium cargo;
●Medium and long distance transportation and stacking;
●Also can be used in closed pallet, pallet height from the ground is very small and shelves at the bottom of the leg space and other occasions;
Applicable to：
Medium storage density and high working turnover rate;
Narrow aisle stacking;

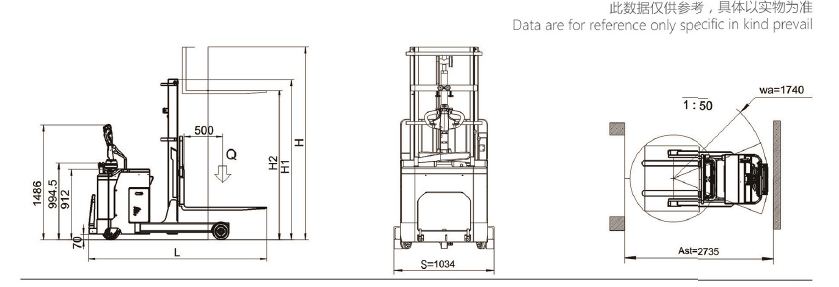

Specification
|
Name |
Electric reach truck（Standing type）（24V） |
|
|
Model |
Unit |
CQD15A-25 |
|
Capacity |
Kg |
1500 |
|
Mast type |
|
Duplex mast |
|
Max. lifting height |
H（mm） |
2500 |
|

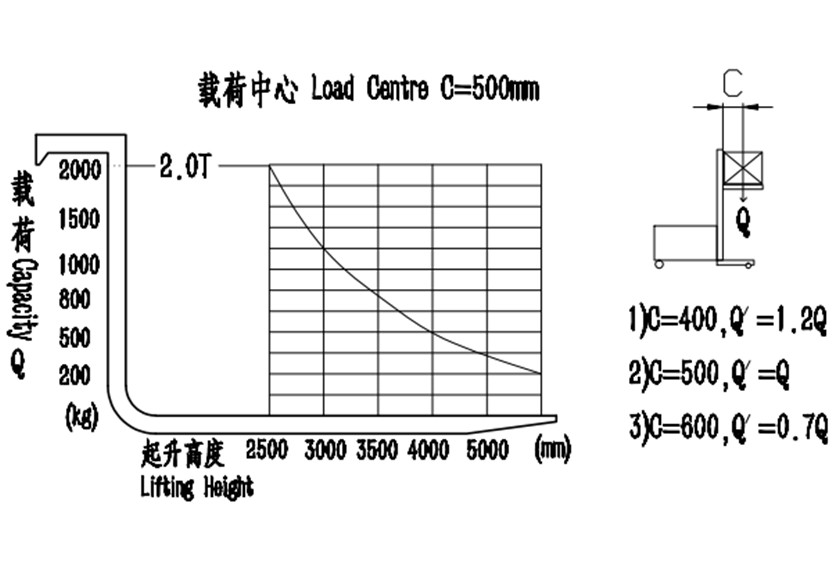

Load center |
C（mm） |
500 |
|
Wheel type |
|
Polyurethane tire （PU） |
|
Fork size |
（mm） |
1070*100*35 |
|
Fork spread |
（mm） |
210-680 |
|
Overall length include fork |
L（mm） |
2335 |
|
Overall width |
S(mm) |
1034 |
|
Mast reach distance |
(mm) |
500 |
|
Height--Mast Lowered |
H1（mm） |
1840 |
|
Mast height,fork raised(with load-backrest) |
H2（mm） |
3416 |
|
Min.stacking.aisle |
(mm) |
2675 |
|
Turning radius-pedal closed |
WQ（mm） |
1740 |
|
Max.Walking Speed |
Km/h |
4.0/5.0 |
|
Grade ability |
% |
5-8 |
|
Total Weight |
Kg |
1900 |
|
Driving wheel |
mm |
Ø230*75 |
|
Front wheel |
mm |
Ø210*85 |
|
Balance wheel |
mm |
Ø150*50 |
|
Battery capacity |
V/Ah |
24/210 |
|
Charger |
|
24/30 |
|
Driving motor |
Kw |
1.5 |
|
Lifting motor |
Kw |
2.2 |
|
Drive Controlling Type |
|
1.5（AC） |
|
Walking Adjustable Type |
|
Holzer accelerator |
|
Quote |
RMB |
|
Basic configuration：
1、USCURTIS Control system，Stepless speed regulation；
2、24V/210AH Lead acid battery；
3、24V/30A External intelligent charger
4、Imported ZF gearbox, AC drive motor
5、Special channel steel formast
6、High wear resistant polyurethane wheel
7、Electromagnetic brake
8、Electronic steering
