Autoefork 1.5 ton 2 ton Side Standing Electric Reach Truck Forklift

Reach forklift is an industrial handling vehicle, which refers to a forward wheeled handling vehicle for loading and unloading, stacking and short-distance transportation of palletized goods. It is used for the transportation of large objects in storage, usually driven by batteries.

Item NO.:
CQD15 / CQD20
Payment:
T/T OR L/C
Product Origin:
Hefei, China
Color:
Orange / Customizable
Shipping Port:
Shanghai / Nanjing / Shenzhen
Order(MOQ):
1
Goods Stock:
50
Warranty:
1 year
Brand:
EFORK

Inquiry now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

New Products

Product Detail

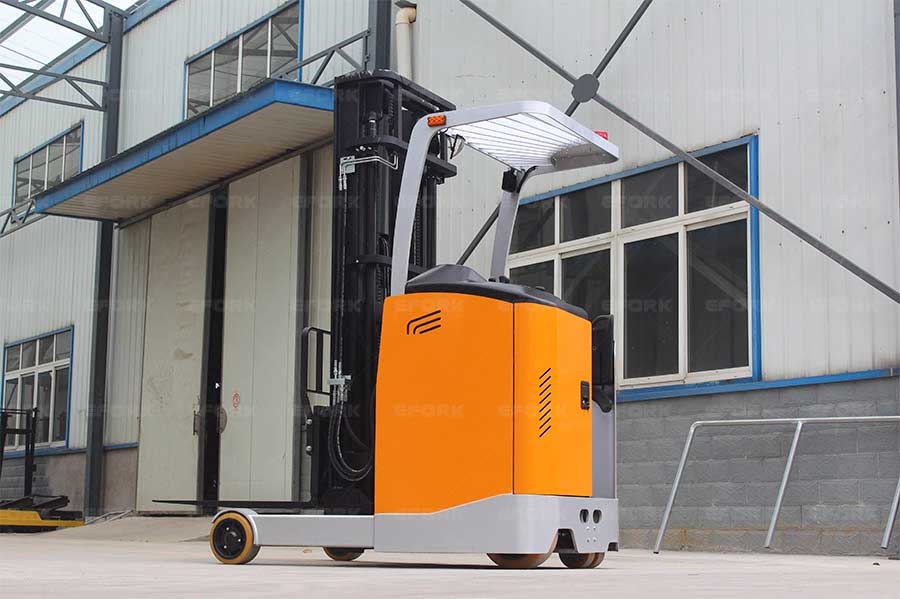

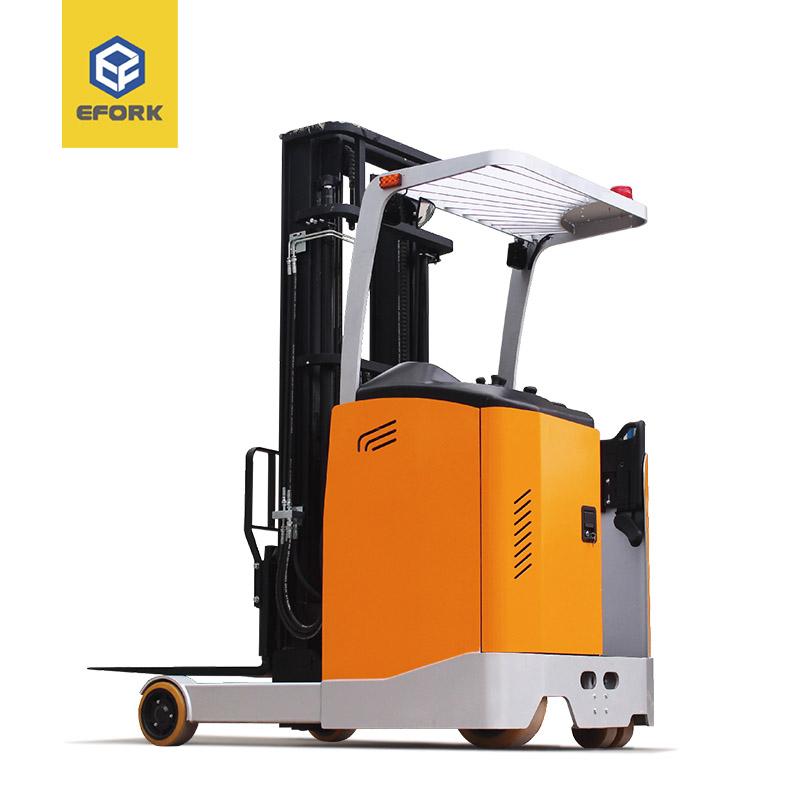

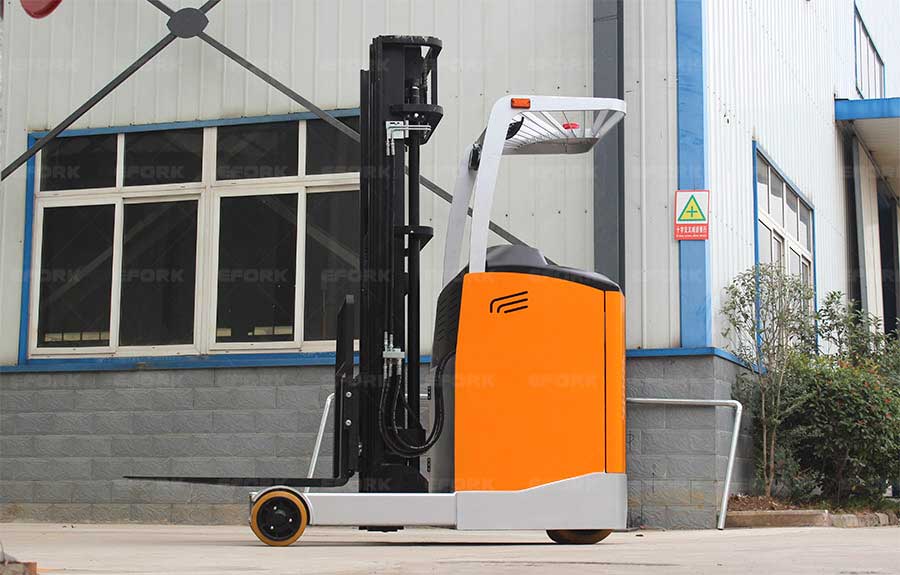

Product Name: Autoefork 1.5 ton 2 ton Side Standing Electric Reach Truck Forklift

Autoefork reach forklifts combine the advantages of counterbalanced electric forklifts and pallet stackers, and have the characteristics of environmental protection and energy saving, low noise, high lifting, and small working space.

Product Description

The body structure is tight and the operation is more flexible. The drive unit is fixed in the central position, with low center of gravity and good stability. It is suitable for cargo storage applications with large tonnage and high lift.
It has the characteristics of the overall forward movement of the gantry, and the small turning radius can ignore the obstacles at the bottom of the shelf.It is suitable for any space limited operation occasions, and it is more convenient to pick up and place goods.
Equipped with a full AC drive system, it has the characteristics of strong climbing ability, maintenance-free, regenerative braking, good working stability and high efficiency, eliminating the trouble of replacing the carbon brushes of the DC motor, and no more maintenance and maintenance.
American CURTIS electronic control, with multiple automatic protection systems, provides a higher level of functional safety.
The intelligent high-definition display instrument can display the information of vehicle operation status in real time, and also provide fault display, which is convenient for troubleshooting and maintenance.
EPS steering energy consumption is reduced by 20%, operation is precise, driver fatigue is reduced, and productivity is greatly improved.
The fork is equipped with the function of forward and backward tilt as standard to prevent the goods from overturning and improve the load stability.
The side-pull battery is suitable for multi-shift occasions, and the battery trolley is equipped as standard, which is more convenient to replace.
The high-level lifting above 6m adopts high-strength German Krupp steel gantry, which is not easy to deform and operates stably and reliably.

Parameters

Electric Reach Forklift （Side Standing Type) 48V CQD
characteristic	1.1	Model No.		CQD15-45S	CQD20-45S
	1.2	Power type		Electric	Electric
	1.3	Operation type		Stand Type	Stand Type
	1.4	Load capacity	Q(kg)	1500	2000
	1.5	Load center	C(mm)	500	500
	1.6	Wheelbase	Y(mm)	1383	1533
	1.7	Reach distance	mm	530	655
Weight	2.1	Total weight with battery	kg	2700	3025
Wheels Chassis	3.1	Wheel type		PU	PU
	3.2	Front wheel	∅×w(mm)	267*114	267*114
	3.3	Drive wheel	∅×w(mm)	382*142	382*142
	3.4	Balance wheel	∅×w(mm)	180*76	180*76
	3.5	Wheel tread,Front wheel	b10(mm)	1081	1081
Dimension	4.1	Mast lowered height	h1(mm)	2100	2100
	4.2	Free lift height	h2(mm)	1500	1500
	4.3	Lifting height	h3(mm)	4500	4500
	4.4	Max.height when lifting	h4(mm)	5480	5480
	4.5	Height of overhead guards	h14(mm)	2280	2280
	4.6	Fork face min.ground clearance	h13(mm)	40	40
	4.7	Fork tilting angle Front/rear	°	3/5	3/5
	4.8	Overall length(Without fork)	l2(mm)	1752	1902
	4.9	Overall width	b1(mm)	1195	1195
	4.10	Fork size	s/e/l(mm)	35/100/1070	40/122/1070
	4.11	Fork adjustment size	b5(mm)	244-700	244-700
	4.12	Min.ground clearance	m2(mm)	80	80
	4.13	Aisle Width for Pallet 1000*1200 Crossaway	Ast(mm)	2730	2882
	4.14	Min.turning radius	Wa(mm)	1680	1836
Performance	5.1	Max.travel speed(unload/load)	km/h	7/6.5	10/9
	5.2	Lifting speed(unload/load)	m/s	0.330/0.245	0.300/0.235
	5.3	Lowering speed(unload/load)	m/s	0.260/0.325	0.270/0.315
	5.4	Max.grade ability(unload/load)	％	≤10	≤10
	5.5	Brake type		Electromagnetism	Electromagnetism
Motor,Charger	6.1	Driving motor	kw	6.5	6.5
	6.2	Lifting motor	kw	6.3	6.3
	6.3	Battery type		Lead Acid	Lead Acid
	6.4	Battery capacity	V/Ah	48V300Ah	48V400Ah
	6.5	Charger	V/Ah	48V/40A	48V/50A
Other	7.1	Drive controlling type		AC	AC
Other	7.2	EN12053 Noise level in driver's ear	dB(A)	75	75
