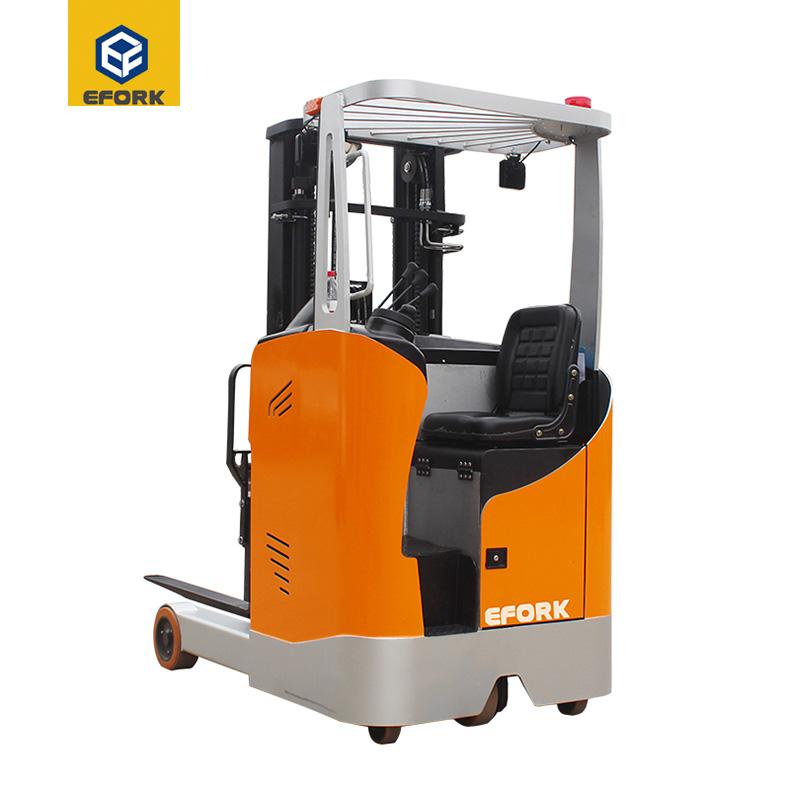

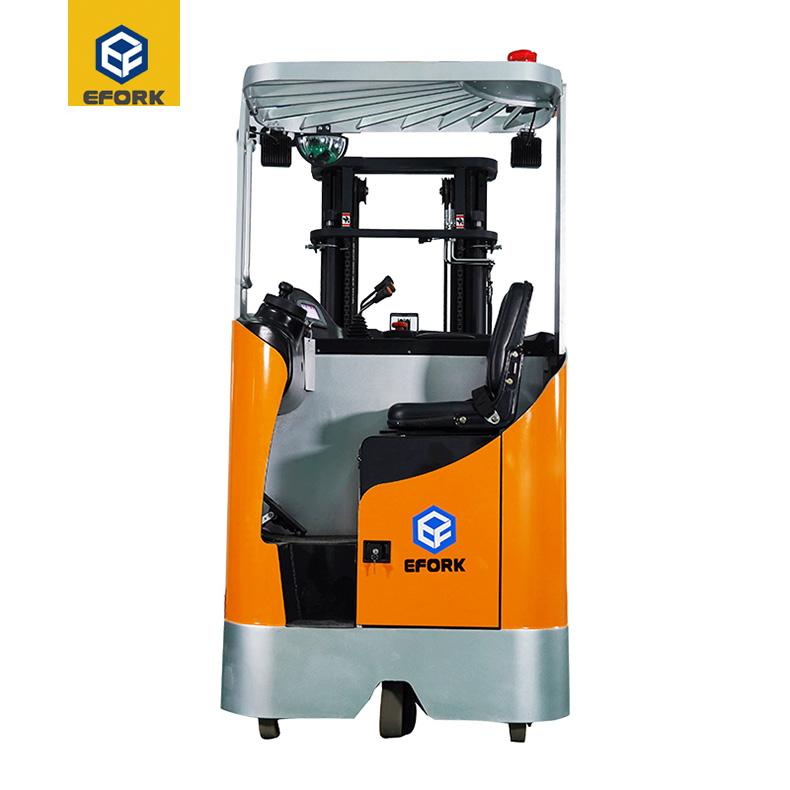

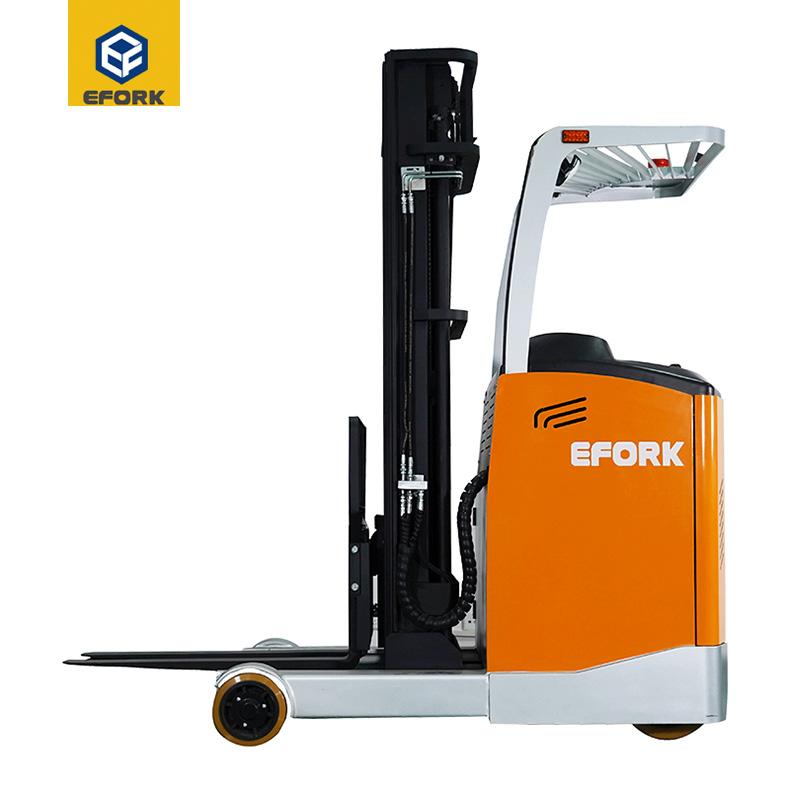

2 Ton Sit On Electric Reach Truck Forklift

Autoefork reach truck forklifts have compact structure, suitable for operations in narrow roadways and limited spaces.They have high lifting and loading capacity, and they are ideal tools for loading, unloading, and stacking in warehouses, supermarkets and workshops.

Item NO.:
CQD15C / CQD20C
Payment:
T/T OR L/C
Product Origin:
Hefei, China
Color:
Orange / Customizable
Shipping Port:
Shanghai / Nanjing / Shenzhen
Order(MOQ):
1
Goods Stock:
50
Warranty:
1 year
Brand:
EFORK

Inquiry now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

New Products

Product Detail

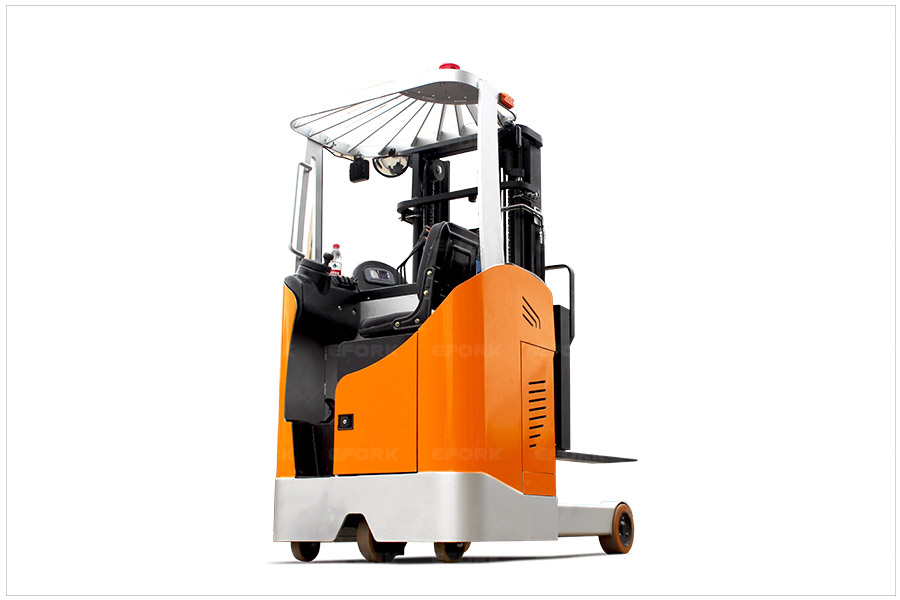

Product Name: 2 Ton Sit On Electric Reach Truck Forklift

Loading Capacity: 1000KG-2000KG

Lifting Height: 1600MM-6000MM

Product Description

Curtis electric control and controller multiple automatic protection system
EPS steering energy consumption is reduced by 20%.It is conducive to accurate operation, reduces driver fatigue and greatly improves productivity.
Applying to a variety of pallets
Moving forward for the overall gantry
The lifting control lever is in the safe lowering position, and the lowering speed of the fork will automatically slow down when it drops to 100mm above the ground to ensure the safety of operation.
When the fork rises to the highest position, the buffer system reduces the vibration of themast and improves the comfort of the operator.
Magnetic navigation / laser navigation AGV can be customized.

Configuration:

Germany ZF gearbox
Curtis control system
Side-pull battery
Wide angle rearview mirror
Multi-function color display instrument

Parameters

Electric Reach Truck （Seated Type) 24V CQD-C
Characteristic	1.1	Model No.		CQD12C-45S	CQD15C-45S	CQD20C-45S
	1.2	Power type		Electric	Electric	Electric
	1.3	Operation type		Seated type	seated type	seated type
	1.4	Load capacity	Q（kg）	12	1500	200
	1.5	Load center	C(mm)	500	500	500
	1.6	Front overhang	X(mm)	180	180	180
	1.7	Wheelbase	Y(mm)	1355	1355	1540
Weight	2.1	Total weight with battery	kg	1995	2180	2535
Wheels,Chassis	3.1	Wheel type		PU	PU	PU
	3.2	Front wheel	∅×w(mm)	254*104	254*104	254*104
	3.3	Drive wheel	∅×w(mm)	230*75	230*75	230*75
	3.4	Balance wheel	∅×w(mm)	150*50	150*50	150*50
	3.5	Wheel tread,front wheel	b10(mm)	976	976	976
	3.6	Wheel tread,rear wheel	b11(mm)	772	772	772
Dimension	4.1	Mast lowered height	h1(mm)	2120	2120	2120
	4.2	Lifting height	h3(mm)	4500	4500	4500
	4.3	Max.height when lifting	h4(mm)	5485	5485	5485
	4.4	Height of overhead guards	h14(mm)	2090	2090	2090
	4.5	Fork face min.ground clearance	h13(mm)	35	35	40
	4.6	Fork tilting angle Front/rear	°	3/5	3/5	3/5
	4.7	Overall length	L(mm)	2250	2250	2350
	4.8	Body length	l2(mm)	1689	1689	1874
	4.9	Overall width	b1(mm)	1090	1090	1090
	4.10	Fork size	s/e/l(mm)	35/100/1070	35/100/1070	40/122/1070
	4.11	Fork adjustment size	b5(mm)	210-705	210-705	210-705
	4.12	Reach distance	l4(mm)	575	575	645
	4.13	Min.ground clearance	m2(mm)	80	80	80
	4.14	Aisle Width for Pallet 1000*1200 Crossaway	Ast(mm)	2764	2764	2872
	4.15	Min.turning radius	Wa(mm)	1600	1600	1780
Performance	5.1	Max.travel speed(unload/load)	km/h	5/4	5/4	5/4
	5.2	Lifting speed(unload/load)	m/s	0.135/0.115	0.135/0.110	0.135/0.100
	5.3	Lowering speed(unload/load)	m/s	0.085/0.120	0.085/0.132	0.085/0.140
	5.4	Max.Grade ability(unload/load)	％	8/6	8/6	8/6
	5.5	Brake type		Electromagnetism	Electromagnetism	Electromagnetism
Motor,Charger	6.1	Driving motor	kw	2.5	2.5	2.5
	6.2	Lifting motor	kw	3	3	3
	6.3	Battery type		Lead Acid	Lead Acid	Lead Acid
	6.4	Battery capacity	V/Ah	24V280Ah	24V280Ah	24V280Ah
	6.5	Charger	V/Ah	24V/40A	24V/40A	24V/40A
Other	7.1	Drive controlling type		AC	AC	AC
Other	7.2	EN12053 Noise level in driver's ear	dB(A)	75	75	75
