Item NO.:
CQD20DPayment:
T/T OR L/CProduct Origin:
Hefei, ChinaColor:
Orange / CustomizableShipping Port:
Shanghai / Nanjing / ShenzhenOrder(MOQ):
1Goods Stock:
10Warranty:
1 yearBrand:
EFORKProduct Detail

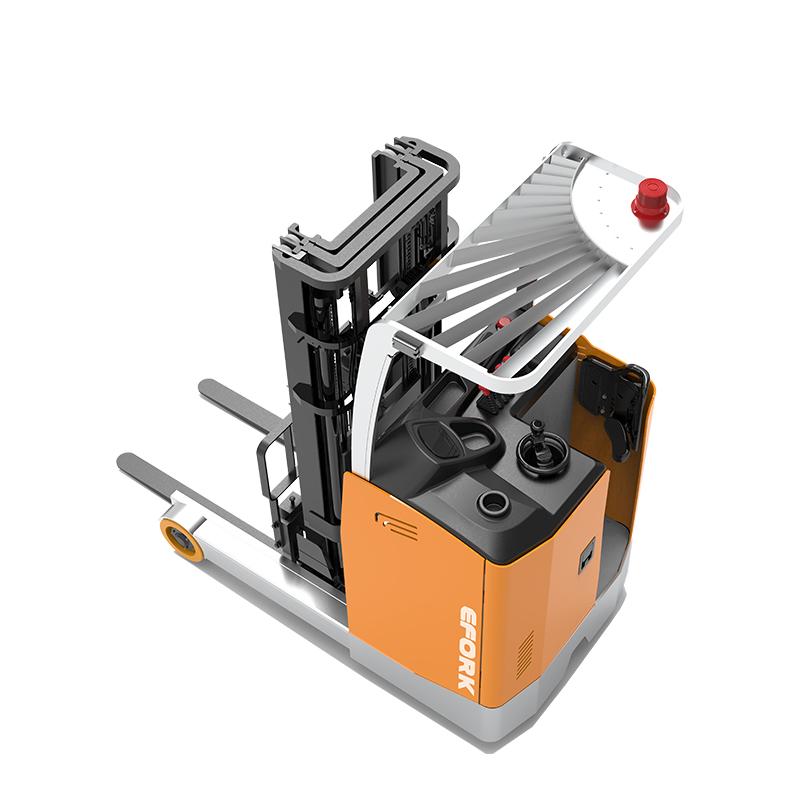

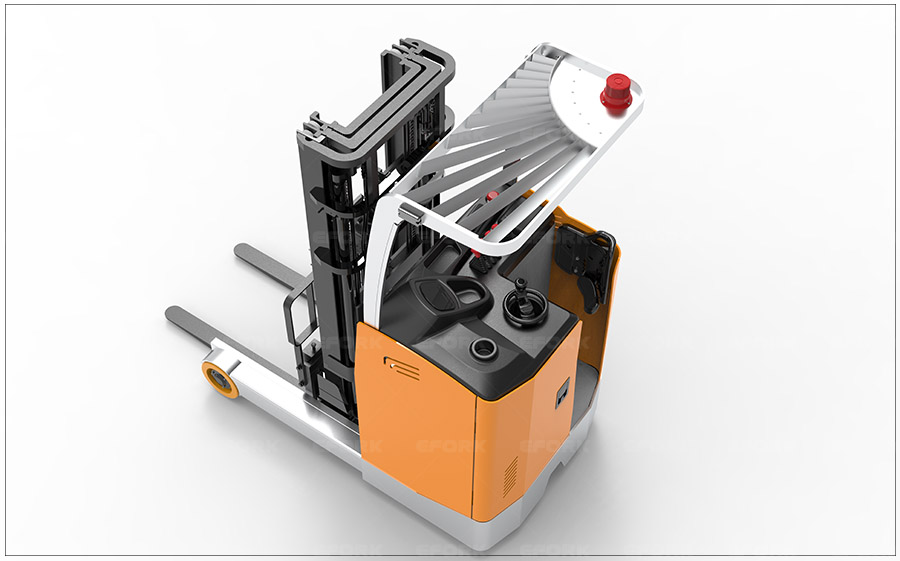

Product Name: 2000kg 6000mm Standing Type Electric Reach Truck Forklift with 24V Battery
Autoefork reach truck forklifts combine the advantages of counterbalanced electric forklifts and pallet stackers, and have the characteristics of environmental protection and energy saving, low noise, high lifting, and small working space.
Video
Product Description
Parameters
| Electric Reach Truck Forklift （Standing Type) 24V CQD-D | ||||||
| Characteristic | 1.1 | Model No. | CQD12D-45S | CQD15D-45S | CQD20D-45S | |
| 1.2 | Power type | Electric | Electric | Electric | ||
| 1.3 | Operation type | Stand Type | Stand Type | Stand Type | ||
| 1.4 | Load capacity | Q(kg) | 1200 | 1500 | 2000 | |
| 1.5 | Load center | C(mm) | 500 | 500 | 500 | |
| 1.6 | Front overhang | X(mm) | 145 | 145 | 145 | |
| 1.7 | Wheelbase | Y(mm) | 1399 | 1399 | 1584 | |
| Weight | 2.1 | Total weight with battery | kg | 2200 | 2200 | 2250 |
| Wheels,Chassis | 3.1 | Wheel type | PU | PU | PU | |
| 3.2 | Front wheel | ∅×w(mm) | 254*104 | 254*104 | 254*104 | |
| 3.3 | Drive wheel | ∅×w(mm) | 230*75 | 230*75 | 230*75 | |
| 3.4 | Balance wheel | ∅×w(mm) | 150*50 | 150*50 | 150*50 | |
| 3.5 | Wheel tread,front wheel | b10(mm) | 970 | 970 | 970 | |
| 3.6 | Wheel tread,rear wheel | b11(mm) | 804 | 804 | 804 | |
| Dimension | 4.1 | Mast lowered height | h1(mm) | 2120 | 2120 | 2120 |
| 4.2 | Lifting height | h3(mm) | 4500 | 4500 | 4500 | |
| 4.3 | Max.height when lifting | h4(mm) | 5485 | 5485 | 5485 | |
| 4.4 | Height of overhead guards | h14(mm) | 2280 | 2280 | 2280 | |
| 4.5 | Fork face min.ground clearance | h13(mm) | 35 | 35 | 40 | |
| 4.6 | Fork tilting angle Front/rear | ° | 3/5 | 3/5 | 3/5 | |
| 4.7 | Overall length | L(mm) | 2272 | 2272 | 2385 | |
| 4.8 | Body length | l2(mm) | 1703 | 1703 | 1888 | |
| 4.9 | Overall width | b1(mm) | 1098 | 1098 | 1098 | |
| 4.10 | Fork size | s/e/l(mm) | 35/100/1070 | 35/100/1070 | 40/122/1070 | |
| 4.11 | Fork adjustment size | b5(mm) | 210-705 | 210-705 | 210-705 | |
| 4.12 | Reach distance | l4(mm) | 535 | 535 | 645 | |
| 4.13 | Min.ground clearance | m2(mm) | 77 | 77 | 77 | |
| 4.14 | Aisle Width for Pallet 1000*1200 Crossaway | Ast(mm) | 2771 | 2771 | 2880 | |
| 4.15 | Min.turning radius | Wa(mm) | 1600 | 1600 | 1781 | |
| Performance | 5.1 | Max.travel speed(unload/load) | km/h | 5/4 | 5/4 | 5/4 |
| 5.2 | Lifting speed(unload/load) | m/s | 0.135/0.115 | 0.135/0.110 | 0.135/0.100 | |
| 5.3 | Lowering speed(unload/load) | m/s | 0.085/0.120 | 0.085/0.132 | 0.085/0.140 | |
| 5.4 | Max.grade ability(unload/load) | ％ | 8/6 | 8/4 | 8/4 | |
| 5.5 | Brake type | Electromagnetism | Electromagnetism | Electromagnetism | ||
| Motor,Charger | 6.1 | Driving motor | kw | 2.5 | 2.5 | 2.5 |
| 6.2 | Lifting motor | kw | 3 | 3 | 3 | |
| 6.3 | Battery type | Lead Acid | Lead Acid | Lead Acid | ||
| 6.4 | Battery capacity | V/Ah | 24V280Ah | 24V280Ah | 24V280Ah | |
| 6.5 | Charger | V/A | 24V/40A | 24V/40A | 24V/40A | |
| Other | 7.1 | Drive controlling type | AC | AC | AC | |
| 7.2 | EN12053 Noise level in driver's ear | dB(A) | 75 | 75 | 75 | |
| The data is for reference only, and the details shall be subject to the actual vehicle. | ||||||

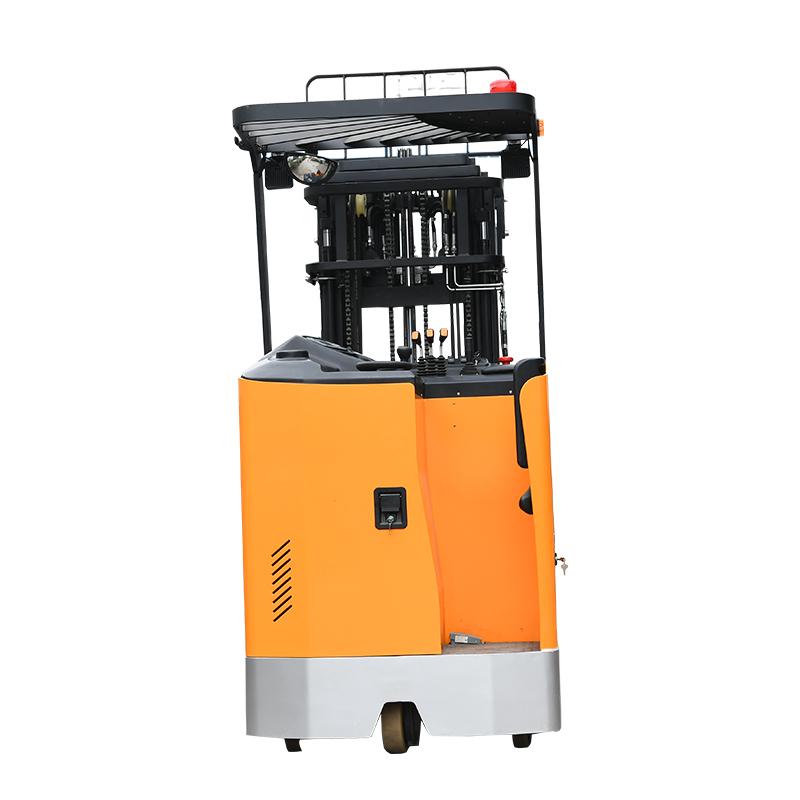

Pictures
