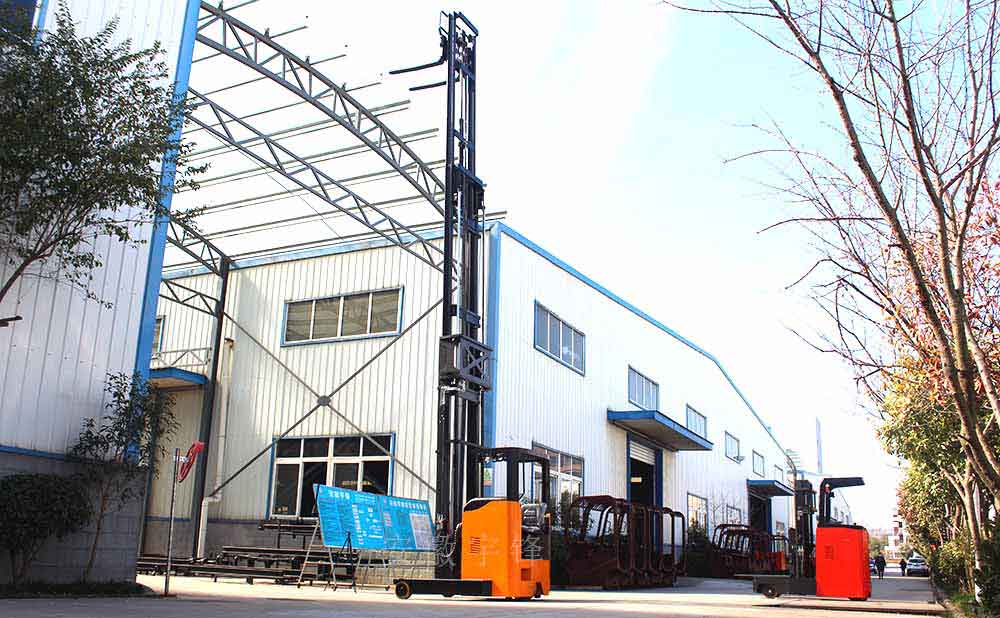

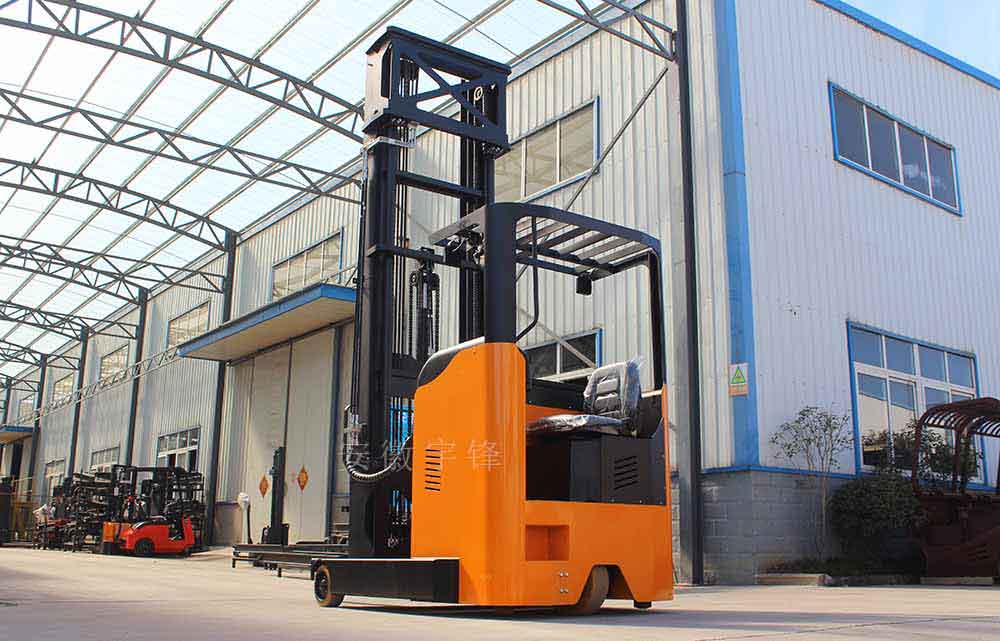

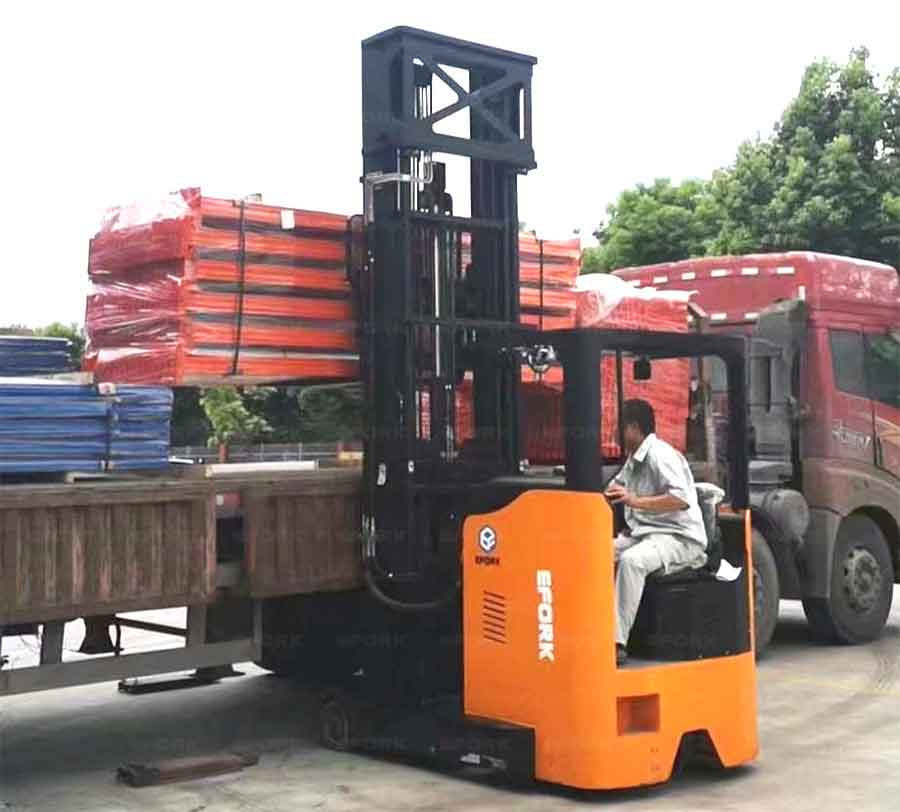

Autoefork CQD-E Electric Reach Truck Forklift

Autoefork reach truck is a kind of forklift that the mast moves forward. It can max load 2.5 tons, and lift to 12 meters. The forward-moving forklift is suitable for working in workshops and warehouses with limited space.

Item NO.:
CQD*E
Payment:
T/T OR L/C
Product Origin:
Hefei, China
Color:
Orange / Customizable
Shipping Port:
Shanghai / Nanjing / Shenzhen
Order(MOQ):
1
Goods Stock:
10
Warranty:
1 year
Brand:
EFORK

Inquiry now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

New Products

Product Detail

Product Name: Autoefork CQD-E Electric Reach Truck Forklift

Loading Capacity: 1500KG-2500KG

Lifting Height: 80MM-12000MM

Video

Product Description

Tight forklift body structure, flexible operation, with a low center of gravity and good stability
Overall forward movement of the mast, small turning radius
Full AC drive system
High-definition display instrument
Fork forward and backward tilting function
Side pull battery, battery replacement trolley

Configuration

Steering wheel
Pedal power switch
Large front wheel
Optional side shift

Parameters

Electric Reach Forklift （Seated Type) 48V CQD-E
Characteristics	1.1	Model No.		CQD15E-45S	CQD20E-45S	CQD20EH-120S
	1.2	Power Type		Electric	Electric	Electric
	1.3	Operation Type		Seated Type	Seated Type	Seated Type
	1.4	Capacity	Q(kg)	1500	2000	2000
	1.5	Load Center	C(mm)	500	500	500
	1.6	Wheelbase	Y(mm)	1470	1620	1650
	1.7	Reach distance	L(mm)	505	655	610
Total Weight	2.1	Total Weight（with Battery)	kg	3000	3050	5860
Wheels,Chassis	3.1	Wheel Type		PU	PU	PU
	3.2	Front Wheel	Ф×w(mm)	Ф267*114	Ф267*114	Ф267*114
	3.3	Driving Wheel	Ф×w(mm)	Ф382*142	Ф382*142	Ф382*142
	3.4	Front Wheel Base	b10(mm)	1180	1180	1332
Dimension	4.1	Mast Lowered Height	h1(mm)	2105	2105	5136
	4.2	Free Lift Height	h2(mm)	1500	1500	4020
	4.3	Lifting height	h3(mm)	4500	4500	12000
	4.4	Max. Height When Lifting	h4(mm)	5500	5500	12580
	4.5	Height of Overhead Guards	h14(mm)	2180	2180	2180
	4.6	Fork Clearence when Mast Lowered	h13(mm)	40	40	40
	4.7	Mast/Fork Title Angle	°	3/5	3/5	3/5
	4.8	verall Length（Fork Back)	l2(mm)	2477	2477	2515
	4.9	Overall Width	b1(mm)	1270	1270	1460
	4.1	Fork Size	s/e/l(mm)	35/100/1070	40/122/1070	40/122/1070
	4.11	Fork Spread	b5(mm)	210-705	244-705	244-840
	4.12	Min. Ground Clearence	m2(mm)	70	70	70
	4.13	Aisle Width for Pallet 1000*1200 Crossaway	Ast(mm)	2964	3007	3010
	4.14	Min. Turning Radius	Wa(mm)	1800	1900	1922
Performance	5.1	Max. Travel Speed(Unload/Load)	km/h	7.8/6.8	7.8/6.8	7.8/6.8
	5.2	Lifting Speed(Unload/Load)	m/s	0.240/0.120	0.240/0.120	0.240/0.175
	5.3	Decnet Speed(Unload/Load)	m/s	0.260/0.315	0.270/0.305	0.270/0.305
	5.4	Max. Climbing Ability (Unload/Load)	％	≤10	≤10	≤10
	5.5	Brake Type		Electromagnetic	Electromagnetic	Electromagnetic
Motor,Charger	6.1	Driving Motor	kw	6.5	6.5	6.5
	6.2	Lifting Motor	kw	6.3	6.3	8.6
	6.3	Battery Type		Lead Acid	Lead Acid	Lead Acid
	6.4	Battery Vol./Capacity	V/Ah	48V300Ah	48V400Ah	48V400Ah
	6.5	Charger	V/A	48V/40A	48V/50A	48V/40A
Other	7.1	Control Model		AC	AC	AC
Other	7.2	EN12053 Noise level in driver's ear	dB(A)	75	75	75
The data is for reference only, and the details shall be subject to the actual vehicle.
