● Simple and elegant overview design;
● Big Inner/outer space for storage;
● Comfortable operation;
● More options;
Item NO.:
EPQ40BPayment:
T/T OR L/CProduct Origin:
ChinaColor:
Green/Red/OrangeShipping Port:
NANJING / SHANGHAIWarranty:
1 YearBrand:
EFORKProduct Detail

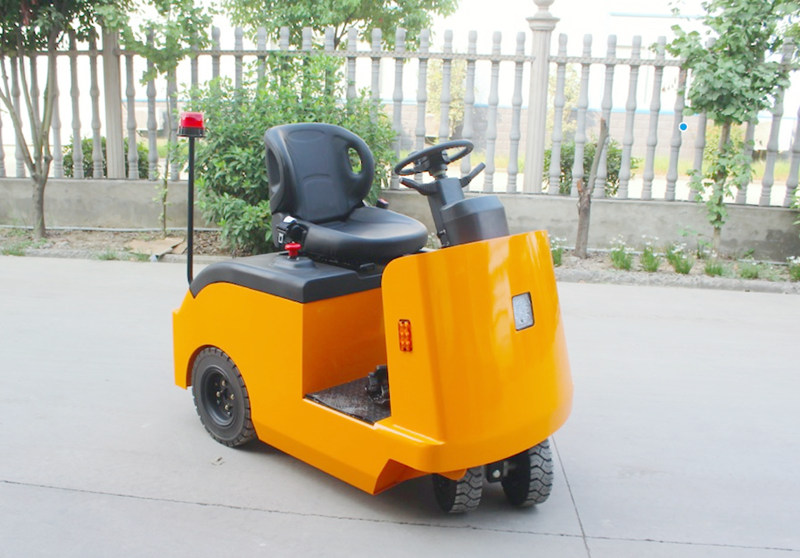

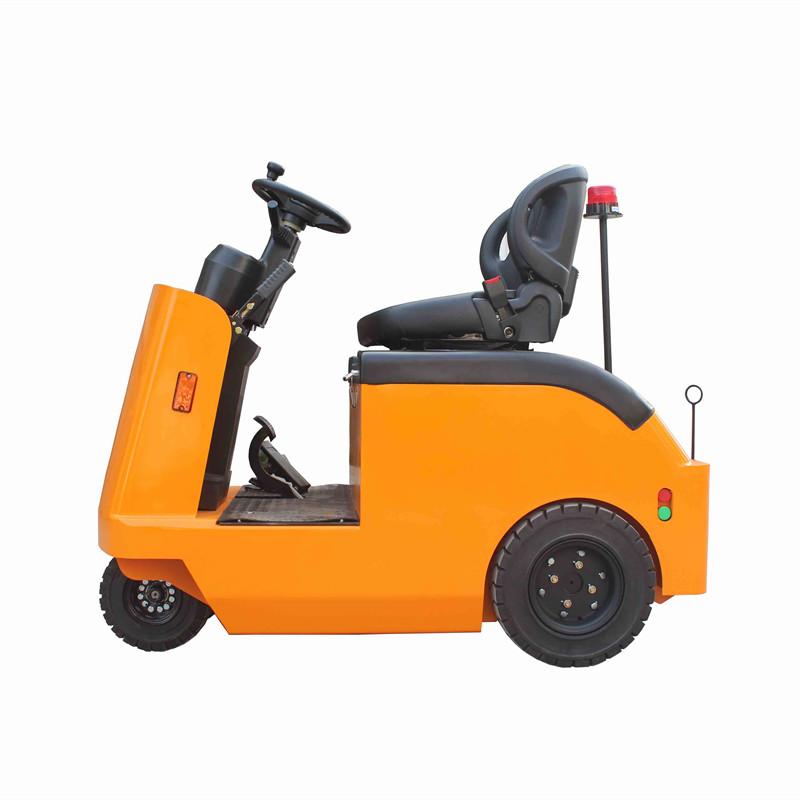

Product Name:Seated rider electric tow tractor 48V
Specification:
|
Name |
Seated Type Electric Tow Tractor（48V） |
||
|
Operation type |
Seated Type |
||
|
Model No. |
Unit |
EPQ40A |
EPQ60A |
|
Power type |
|
Electric |
Electric |
|
Wheel type |
|
Rubber |
Rubber |
|
Maximum traction weight |
KG |
4000 |
6000 |
|
Max. traction |
N |
2050 |
2300 |
|
The instantaneous maximum traction |
N |
4000 |
4000 |
|

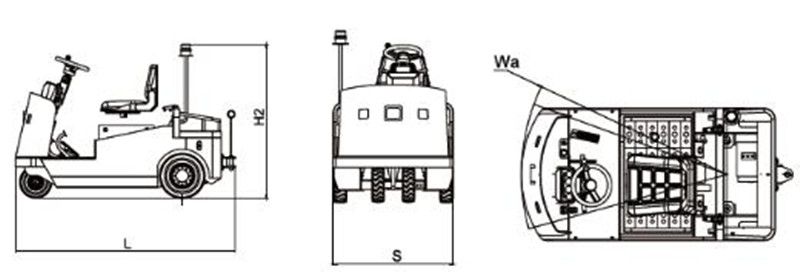

The vehicle height |
H2(mm) |
1420 |
1420 |
|
Overall length |
L(mm) |
2010 |
2010 |
|
Overall width |
S(mm) |
985 |
985 |
|
Max. Travel speed |
Km/h |
8/12 |
16/10 |
|
Wheelbase |
mm |
1357 |
1357 |
|
Turning radius |
Wa(mm) |
1705 |
1705 |
|
Battery weight |
KG |
355 |
550 |
|
Steering type |
|
EPS |
EPS |
|
Parking brake type |
|
Manual operation/Pedal type |
Manual operation/Pedal type |
|
Body weight |
KG |
1020 |
1200 |
|
Front wheel |
mm |
Ø295*96 |
Ø295*96 |
|
Rear wheel |
mm |
Ø415*112 |
Ø415*112 |
|
Battery capacity |
V/Ah |
24/350 |
48/280 |
|
Charger-intelligent |
V/Ah |
24/50 |
48/40 |
|
Drive motor |
Kw |
3 |
4 |
FAQ
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift.
Q2: How about the delivery time?
A2: About 15-30 days based on different model. For the standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
