Economic And Practical Type Electric Pallet Stacker

CDD-WII is an economical all-electric pedal stacker.

Item NO.:
CDD-WII
Payment:
T/T OR L/C
Product Origin:
China
Color:
Green/Red/Orange/Customized
Shipping Port:
Shanghai / Nanjing / Shenzhen
Goods Stock:
200
Warranty:
1 Year
Brand:
EFORK

Inquiry now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

New Products

Product Detail

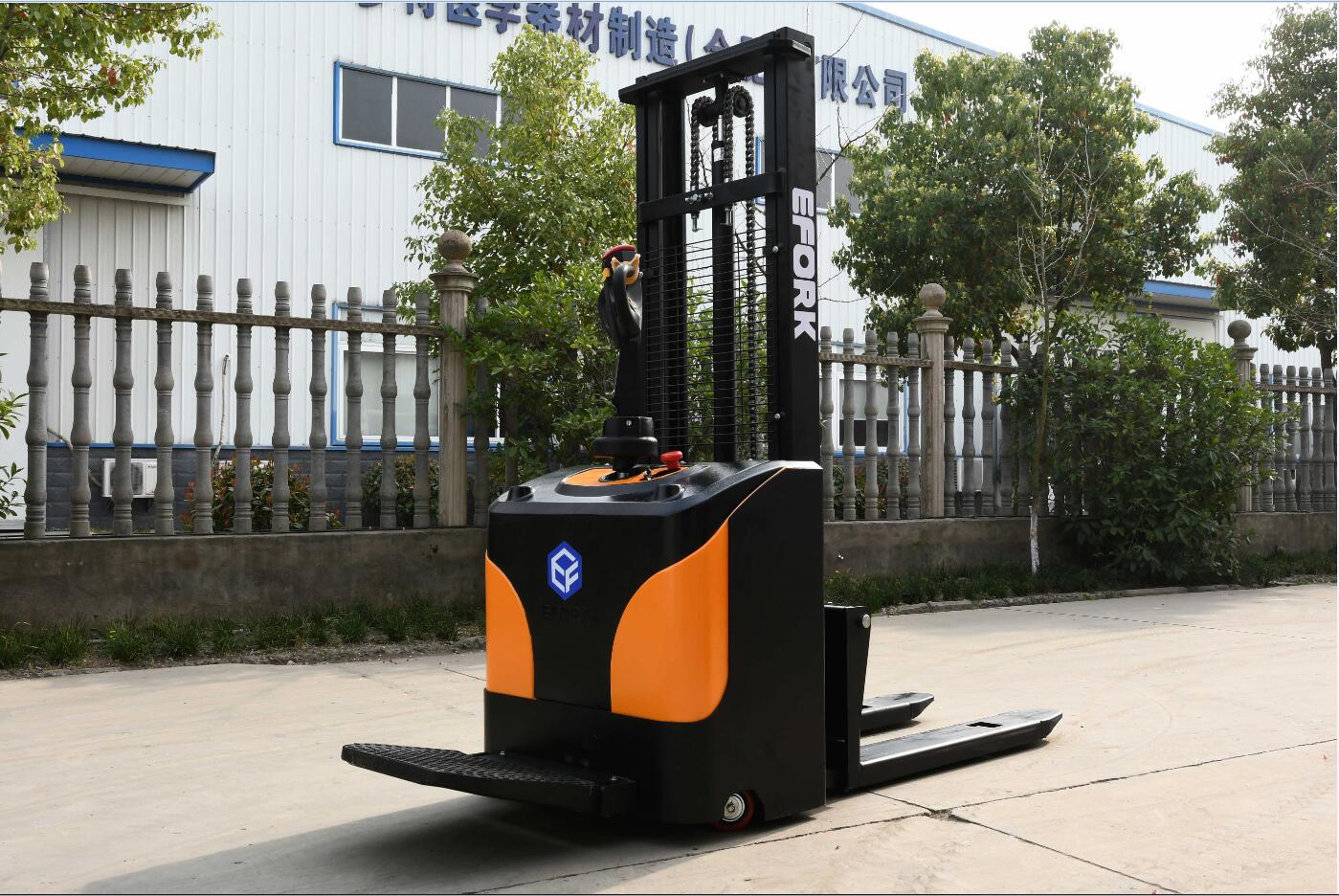

Product Name: Economic And Practical Type Electric Pallet Stacker

CDD-WII is the third-generation economical stacker independently developed by Autoefork. It is suitable for loading, unloading, and transshipment of goods with single-sided pallets or without pallets. It is characterized by high quality and low price.

Product Advantage:

1. Standard pedal, handrails optional;
2. Multifunctional integrated handle: control walking, lifting, steering, and integrate horn, turtle speed, and emergency response at the same time;
3. Standard built-in charger, one stacker one charger, charge anywhere, prevent loss, fixed-point charging and long-term search;
4. Standard maintenance-free lead-acid battery; Small volume, large storage capacity, no liquid maintenance;
5. Compact vehicle structure; Flexible turning and small passage distance;
6. DC separate excitation and full AC drive unit for you to choose.

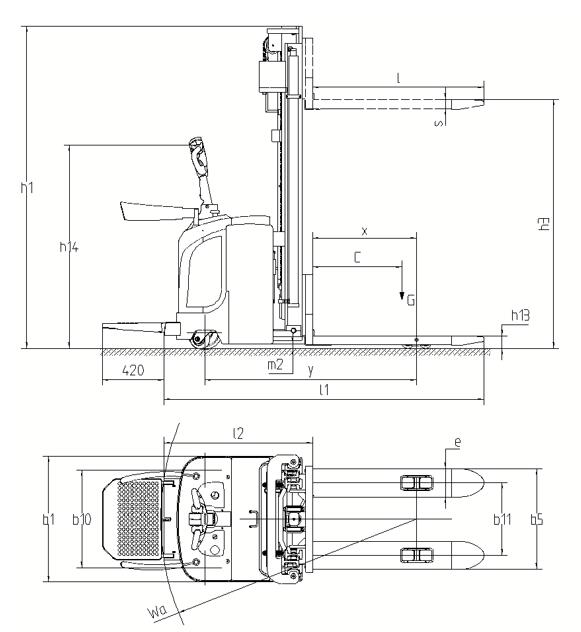

Parameters:

Characteristic	Model		CDD20WⅡ	CDD15WⅡ
	Power		Electric	Electric
	Operation mode		Standing type	Standing type
	Rated load capacity	Q(kg)	2000	1500
	Load center	C(mm)	500	500
Weight	Self-weight with battery	kg	850	790
Wheels, chassis	Wheel type		PU	PU
	Driving wheel	∅×w(mm)	Ф250*80	Ф210*70
	Front wheel	∅×w(mm)	Ф80*70	Ф80*70
	Balance wheel	∅×w(mm)	Ф150*45	Ф150*45
	Wheel track, front wheel	b10(mm)	520	520
Dimension	Wheelbase		1297	1297
	Height when the mast is retracted	h1(mm)	2080	2080
	Lifting height	h3(mm)	3000	3000
	Max. height of mast when lifting	h4(mm)	3527	3527
	Vehicle body length(pedal folded)	l2(mm)	2035	2035
	Vehicle body width	b1(mm)	850	850
	Fork size	s/e/l(mm)	65/165/1150	65/165/1150
	Fork outer width	b5(mm)	680	680
	Min. ground clearance (wheelbase center)	m2(mm)	30	30
	Stacking channel width	Ast(mm)	2496 pallet 1000×1200 (1200 placed across forks)	2496 pallet 1000×1200 (1200 placed across forks)
	Min. turning radius(pedal folded)	Wa(mm)	1638	1638
Performance	Max. driving speed, no load / full load	km/h	5.5/5.0	4/3.5
Performance	Service brake		Electromagnetic	Electromagnetic
Motor	Driving motor power	kw	1.5 AC	0.75 DC
	Lifting motor power	kw	2.2 DC	2.2 DC
	Battery		Maintenance-free lead-acid battery	Maintenance-free lead-acid battery
	Battery voltage / capacitance	V/Ah	24V/160ah	24v/100ah
