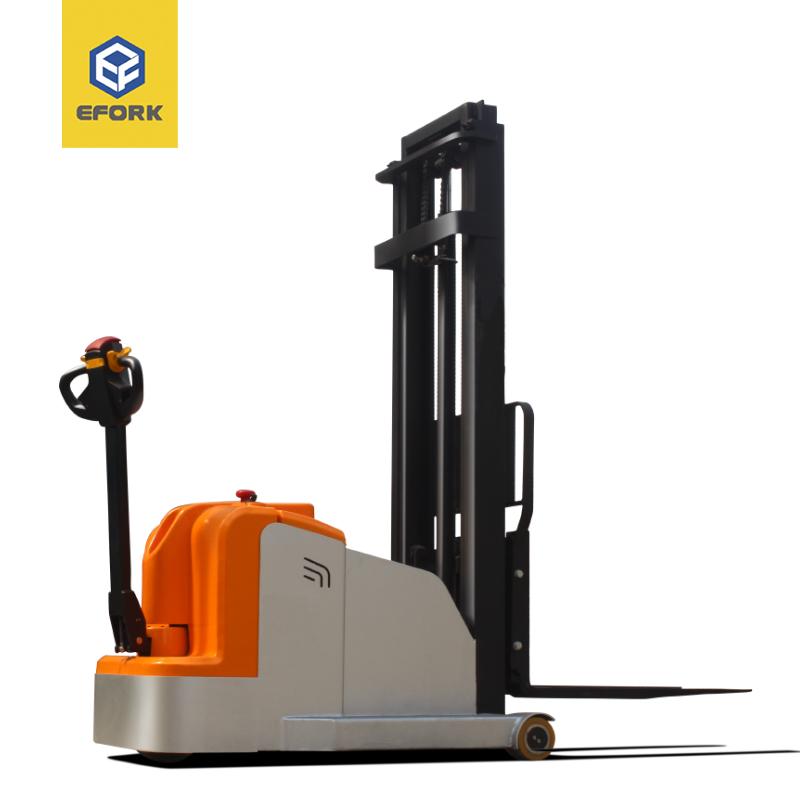

900-1000KG Walking Type Counterbalanced Electric Pallet Stacker

Walking Type Counterbalanced Electric Pallet Stacker CPDB-W, compared with similar products in the market, it has a smaller turning radius, a larger load center distance (500mm), and better performance.

Item NO.:
CPDB09W-30
Payment:
T/T OR L/C
Product Origin:
China
Color:
Orange/Green/Red
Shipping Port:
SHANGHAI / NINGBO / SHENZHEN
Order(MOQ):
1
Goods Stock:
500
Warranty:
1 Year or 2000 hours
Brand:
EFORK

Inquiry now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

New Products

Product Detail

Product Name: 900-1000KG Walking Type Counterbalanced Electric Pallet Stacker

Autoefork CPDB-W series electric pallet stacker is compact & light weight warehouse handling equipment, which applies to narrow sites.

American CURTIS Curtis control system, with multiple automatic protection systems, provides a higher level of functional safety.

Capacity:900/1000 Kg

Lifting height:2500-3000 mm

Apply to: single and double-deck pallet

Product Advantage:

●American CURTIS control system;

●Maintenance-free battery (optional lithium battery);

●Excellent layout structure, easy maintenance.

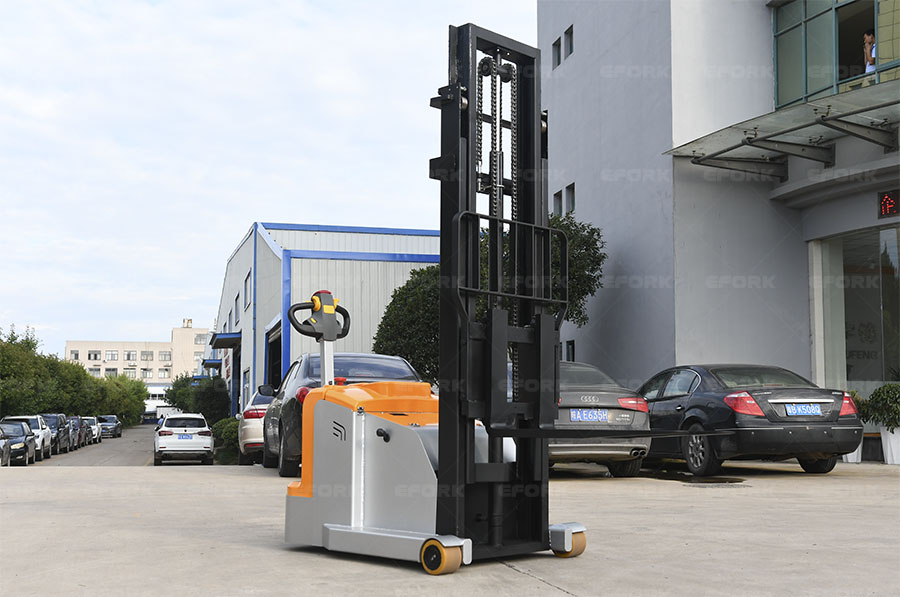

Walking Electric Stacker

Specifications:

Name	Walking Type Counterbalanced Electric Pallet Stacker
Model No.		CPDB09W-30	CPDB09W-30-Li		CPDB10W-30
Load Capacity	Kg	900	900		1000
Max lifting height	H（mm）	3000	3000		3000
Load center	C（mm）	500	500		500
Wheel Type		Pu solid tire
Fork size	mm	92010035
Overall length	L（mm）	2245	2245		2408
Overall width	S（mm）	916	916		916
Height--Mast Lowered	H1（mm）	2080	2080		2080
Maximum height when fork is lifting	H2（mm）	3913	3913		3913
Minimum ground clearance	M2（mm）	40	40		40
Turning radius	W（mm）	1257	1257		1428
wheelbase	(mm)	1070	1070		1240
Min. stacking aisle 1000*1000 pallet	mm	2859	2859		3030
Max. Walking Speed	Km/h	3.5/4	3.5/4		3.5/4
Grade ability	%	5.0/4.5	5.0/4.5		5.0/4.0
Total Weight	Kg	1290	1240		1320
Front wheel	mm	Ø140*100
Rear wheel	mm	Ø210*70
Battery capacity	V/Ah	24/100		24/50		24/100
Driving motor	Kw	0.75
Lifting motor	Kw	2.2
Walking Adjustable Type		Holzer type accelerator
