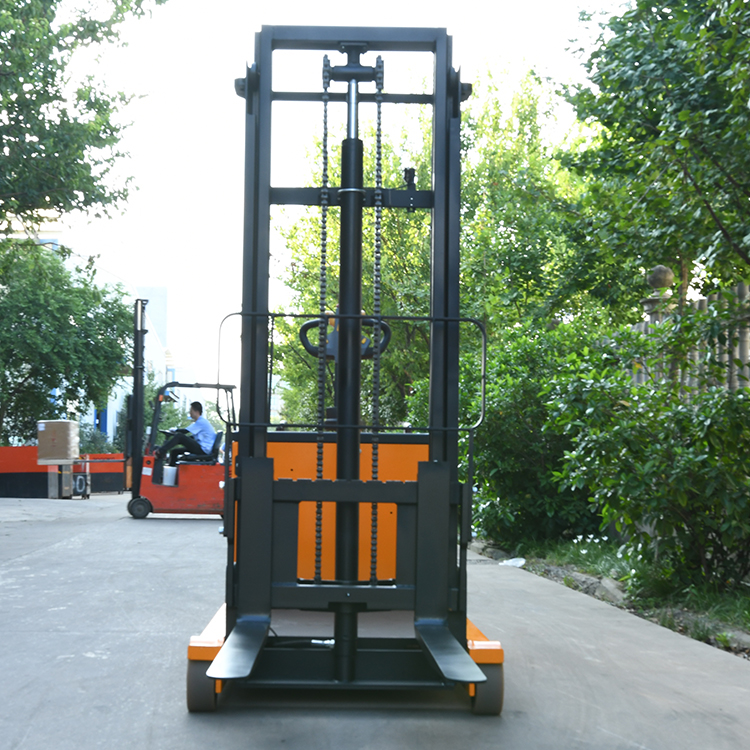

Standing Counterbalanced Type Electric Pallet Stacker

CPDB is a pallet stacker without fork legs, and it is suitable for single-deck pallet and double-deck pallet.

Item NO.:
CPDB
Payment:
T/T OR L/C
Color:
Orange/Green/Red/Customized
Shipping Port:
Shanghai / Nanjing / Shenzhen
Goods Stock:
500
Warranty:
1 Year
Brand:
EFORK

Inquiry now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

New Products

Product Detail

Product Name: Standing Counterbalanced Type Electric Pallet Stacker

Counterbalanced weight type stacker, one of the models in the pallet stackers series, in addition to all occasions where conventional stackers can be used, it can also be used in closed pallets that cannot be used by conventional stacker truck, small height of pallet from the ground and no leg extension space at the bottom of shelf.

Product Advantage:

CURTIS electronic control, multiple automatic protection system controller
Pallet stacker (counterweight type), adjustable forging fork, easy to apply to a variety of pallets, convenient access to goods, reduce the trouble of fork legs can not enter the space.
High quality hydraulic system with buffer, low noise, small vibration, good sealing, stable and reliable lifting and lowering
Anti slip braking function, to prevent the car from sliding when it is out of control or driving on a slope
AC drive system, stepless drive, safety, mute, emergency reverse device / emergency brake switch
As a standard configuration, the emergency power-off switch can cut off all the power supply by pressing the emergency stop button. The car stopsimmediately or cuts off power quickly in case of emergency, providing safety protection.
Multi functional handle, integrated control (acceleration, horn, emergency anticollision, lifting button), human-machine design and operation more comfortable

Configuration:

US CURTIS Control system
ZF gearbox
EPS
24V/210Ah lead acid battery
EPS

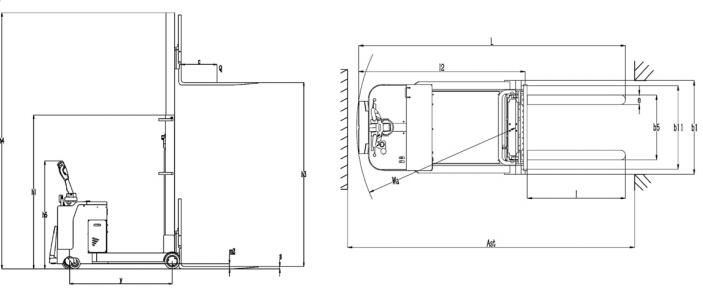

Parameters:

Characteristic	1.1	Model		CPDB10-25	CPDB15-25	CPDB20-25
	1.2	Power		Electric	Electric	Electric
	1.3	Operation mode		Standing type	Standing type	Standing type
	1.4	Rated load capacity	Q(t)	1000	1500	2000
	1.5	Load center	C(mm)	500	500	500
	1.6	Front overhang	X(mm)	157	157	157
	1.7	Wheelbase	Y(mm)	1335	1435	1635
Weight	2.1	Self-weight with battery	kg	1700	1775	1890
Wheels, chassis	3.1	Wheel type		PU	PU	PU
	3.2	Driving wheel	∅×w(mm)	φ230*75	φ230*75	φ230*75
	3.3	Front wheel	∅×w(mm)	φ210*85	φ210*85	φ210*85
	3.4	Rear wheel	∅×w(mm)	φ150*50	φ150*50	φ150*50
	3.5	Wheel track, front Wheel	b10(mm)	735	735	735
	3.6	Wheel track, rear wheel	b11(mm)	955	955	955
Dimension	4.1	门Height when the mast is retracted	h1(mm)	1840	1840	1840
	4.2	Lifting height	h3(mm)	2500	2500	2500
	4.3	Max. height of mast when lifting	h4(mm)	3417	3417	3417
	4.4	Vehicle body length (pedal folded)	l2(mm)	2814	2914	3114
	4.5	Vehicle body width	b1(mm)	983	983	983
	4.6	Fork size	s/e/l(mm)	35/100/1070	35/100/1070	40/122/1070
	4.7	Fork adjustment	b5(mm)	210-680	210-680	210-680
	4.8	Min. ground clearance (wheelbase center)	m2(mm)	70	70	70
	4.9	Stacking channel width, pallet 1000×1200 (1200 placed across forks)	Ast(mm)	3080	3180	3370
	4.10	Min. turning radius	Wa(mm)	1645	1740	1940
Performance	5.1	Driving speed, no load / full load	km/h	5.5/4.5	5.5/4.5	5/4
	5.2	Lifting speed, no load / full load	m/s	0.112/0.095	0.112/0.092	0.112/0.085
	5.3	Descent speed, no load / full load	m/s	0.094/0.110	0.094/0.115	0.096/0.123
	5.4	Max. gradeability, no load/full load	％	8/5	8/5	6/4
	5.5	Service brake		Electromagnetic braking	Electromagnetic braking	Electromagnetic braking
Motor	6.1	Driving motor power	kw	1.5	1.5	2.5
	6.2	Lifting motor power	kw	2.2	2.2	2.2
	6.3	Battery		Lead-acid battery	Lead-acid battery	Lead-acid battery
	6.4	Battery voltage / capacitance	V/Ah	24V210Ah	24V210Ah	24V210Ah
	6.5	Charger		24V30A	24V30A	24V30A
Others	7.1	Driving control mode		AC	AC	AC
Others	7.2	The noise level in the driver's ear is based on EN12053	dB(A)	70	70	70
The data is for reference only, and the details shall be subject to the actual vehicle.
