Item NO.:
CDD-BJPayment:
30% TT in advance, 70% before deliveryProduct Origin:
AnhuiColor:
Orange/Blue/RedShipping Port:
shanghaiLead Time:
About 45 working days after received thOrder(MOQ):
1Goods Stock:
50Product weight:
2450Warranty:
one yearBrand:
EFORKProduct Detail

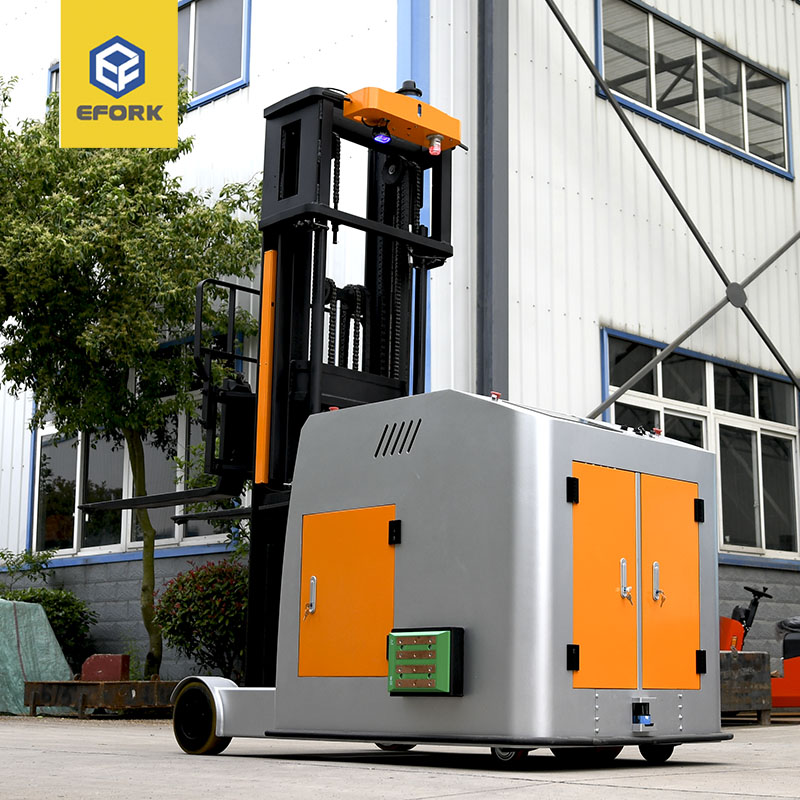

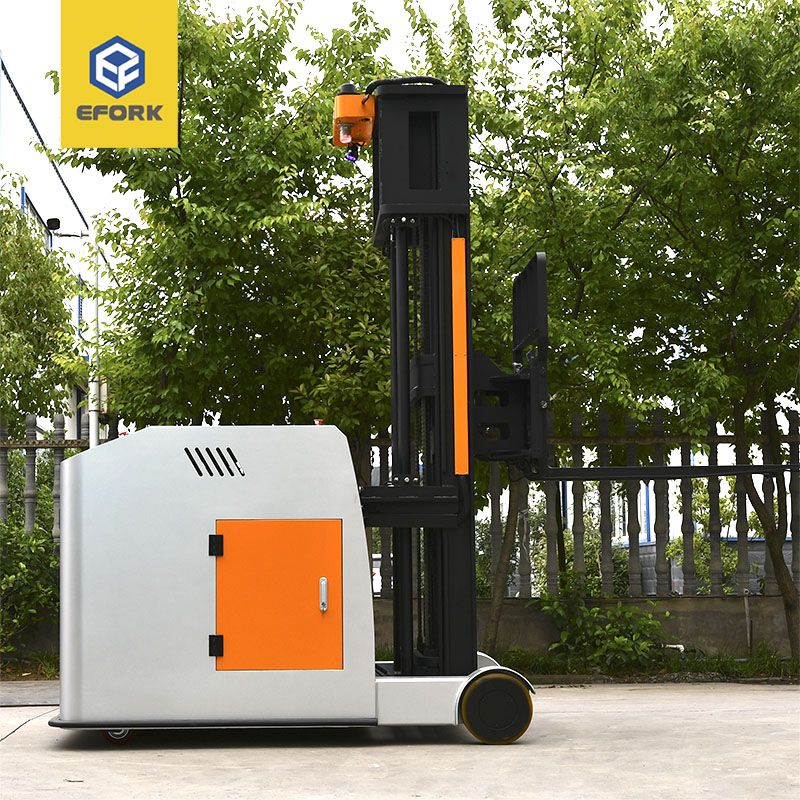

Product Name:Electric Forklift AGV
Product Advantage
1. Laser navigation, high positioning accuracy, even in no light environment; forklift can also accurately locate;
2. With heavy load and rated load up to 3000kg, it is suitable for factories and workshops with limited site area;
3. The vehicle body and navigation system can be customized to meet various use scenarios;
Product Data
| CDD*BJ01-30 | |||
|
（Basic parameters） |
Dimension (including fork） | mm | L3295*W1244*H2250 |
| self weight | kg | / | |
| Navigation mode | Laser navigation | ||
| control mode | intelligent motion control system | ||
| Lift height | mm | 3000 | |
| Rated load | kg | 1000~3000 | |
| Load center | mm | 500 | |
|
Sports performance |
Running speed | m/min | 50 |
|
Operating temperature |
℃ | -10℃-40℃ | |
| Orientation accuracy | mm | ±10mm | |
| Accuracy of stop | mm |
±20mm (Secondary positioning is needed for higher accuracy) |
|
| Direction of travel | Double ways | ||
| Lifting speed (loaded / unloaded) | mm/s | - | |
|
（Descent speed (loaded / unloaded)） |
mm/s | - | |
|
Minimum turning radius (excluding AST) |
mm | 2100 | |
|
1200*1000 （Stacking channel (1200 fork * 1000)） |
mm | 3850(Contain Ast) | |
| Performance of lithium battery | Rated voltage | V | 48 |
| electric capacity | Ah | Customizable | |
|
Number of charge discharge cycles |
|
1500 | |
| Endurance time） | h | It runs for about 8 hours | |
| Charging time） | h | 1-2 | |
|
Safety protection |
Laser obstacle avoidance | YES | |
| Pallet in place inspection | YES | ||
| Inspection of fork tooth infrared sensor | YES | ||
| Emergency stop button | YES | ||
| Sound and light alarm | YES | ||
| Mechanical collision avoidance | YES | ||
IPv6 network supported
