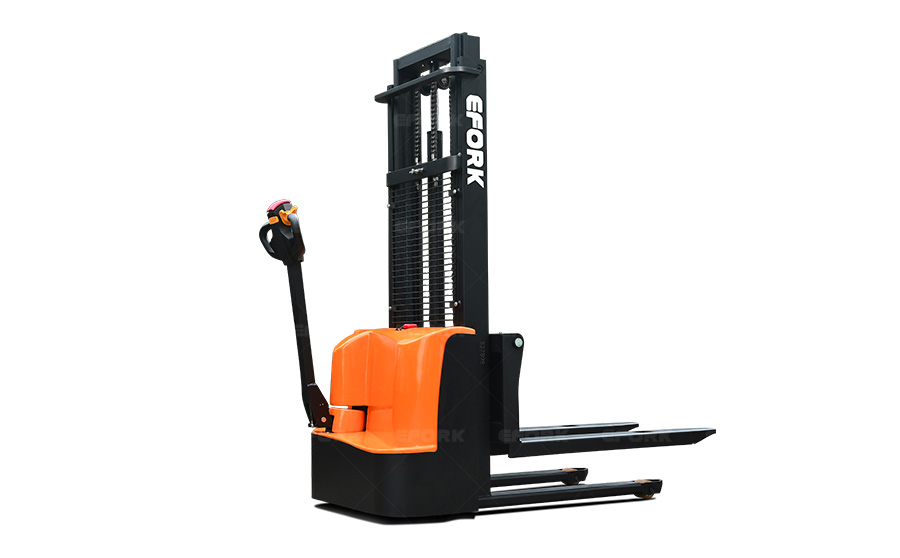

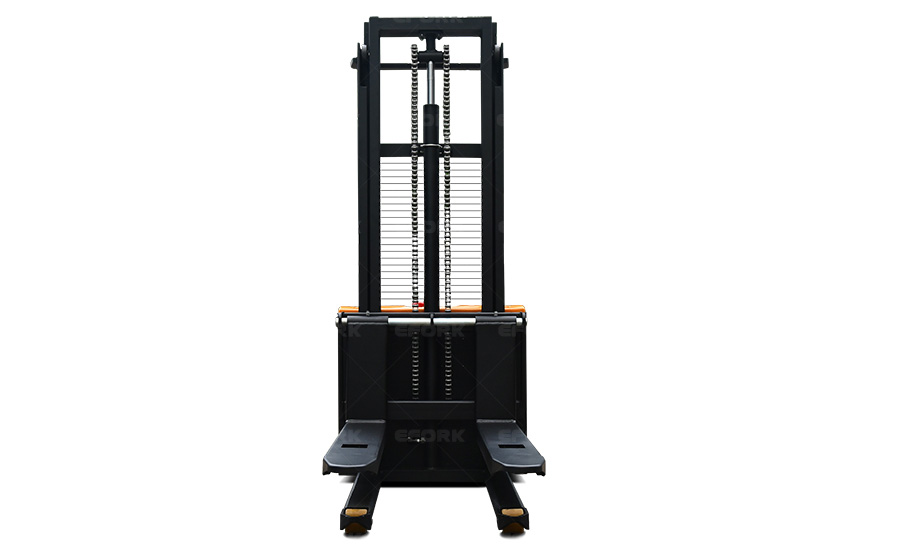

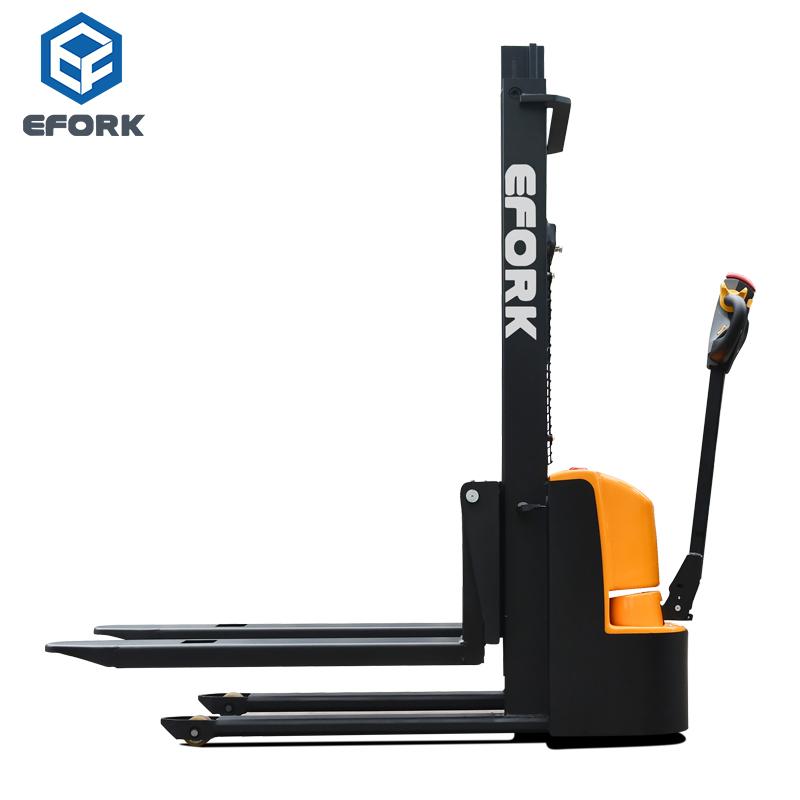

1.5Ton 3300LB 3 Meter 9.8Ft Electric Walkie Pallet Stacker Forklift

Autoefork Electric Walkie Pallet Stacker is designed with compact dimension but big performance. It have the capacity of 1.5 Ton 3300 LB and lifting height up 4 Meters,

It is perfect fits for warehouse， supermarket， Medical Factory， Airports，Schools。 Or anywhere you want to use it.

Item NO.:
CDDC15-30
Payment:
TT& LC
Market Price:
$1788
Product Origin:
CHINA
Color:
Orange, Red, Green, Customized
Shipping Port:
Shanghai,Ningbo, Nanjing
Lead Time:
20 Day after Deposit
Order(MOQ):
1
Warranty:
1 year or 2000 Hours
Brand:
EFORK

Inquiry now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

New Products

Product Detail

Product Name:1.5Ton 3300LB 3 Meter 9.8Ft Electric Walkie Pallet Stacker Forklift

Electric Walkie Pallet Stacker Forklift is a machine that can be flexibly handled in warehouses, workshops and other places. It is used with pallets, with a maximum load of 1.5 tons and a maximum lifting height of 4 meters.

Product Description

Ready stock & fast delivery
1000-1500kg loading capacity, 1600-4000mm lifting height
Control handle: thumb control, both sides of lifting and lowering button,
Emergency reverse button, turtle speed switch, horn
Emergency stop, key switch, hour meter
GEL battery maintain-free
Built-in charger
Customizable
Small turning radius
Long tiller design meets the requirements of ergonomics and safety
Low Gravity Design, 4 Points Design, Improve the Trucks Stability.
The compact design and small size, offer excellent visibility

Parameters

Electric Pallet Stacker （Walkie Type) CDDC
Characteristics	1.1	Model No.		CDDC10-16	CDDC10-25	CDDC10-30	CDDC15-25	CDDC15-30
	1.2	Power Type		Electric	Electric	Electric	Electric	Electric
	1.3	Operation Type		Walkie Type	Walkie Type	Walkie Type	Walkie Type	Walkie Type
	1.4	Capacity	Q(Kg)	1000	1000	1000	1500	1500
	1.5	Load Center	C(mm)	500	500	500	500	500
	1.6	Bearing Distance	X(mm)	720	720	720	720	720
	1.7	Wheelbase	Y(mm)	1197	1197	1197	1197	1197
Total Weight	2.1	Total Weight（with Battery)	kg	506	546	566	626	656
Wheels,Chassis	3.1	Wheel Type		PU	PU	PU	PU	PU
	3.2	Front Wheel	Ф×w(mm)	Φ80×70	Φ80×70	Φ80×70	Φ80×70	Φ80×70
	3.3	Driving Wheel	Ф×w(mm)	Φ210×70	Φ210×70	Φ210×70	Φ210×70	Φ210×70
	3.4	Balance Wheel	Ф×w(mm)	Ф125×50	Ф125×50	Ф125×50	Ф125×50	Ф125×50
	3.5	Front Wheel Base	b10(mm)	515.5	515.5	515.5	515.5	515.5
	3.6	Rear Wheel Base	b11(mm)	520	520	520	520	520
Dimension	4.1	Mast Lowered Height	h1(mm)	2075	1825	2075	1825	2075
	4.2	Lift Height	h3(mm)	1600	2500	3000	2500	3000
	4.3	Max. Height When Lifting	h4(mm)	2075	3037	3537	3037	3537
	4.4	Fork Clearence when Mast Lowered	h13(mm)	85	85	85	85	85
	4.5	Overall Length	l2(mm)	1785	1785	1785	1785	1785
	4.6	Overall Width	b1(mm)	800	800	800	800	800
	4.7	Fork Size	s/e/l(mm)	65/165/1150	65/165/1150	65/165/1150	65/165/1150	65/165/1150
	4.8	Fork Spread	b5(mm)	680-337	680-337	680-337	680-337	680-337
	4.9	Min. Ground Clearence	m2(mm)	15.3	15.3	15.3	15.3	15.3
	4.10	Aisle Width for Pallet 1000*1200 Crossaway	Ast(mm)	2235	2235	2235	2235	2235
	4.11	Min. Turning Radius	Wa(mm)	1380	1380	1380	1380	1380
Performance	4.12	Max. Travel Speed(Unload/Load)	km/h	4/3.5	4/3.5	4/3.5	4/3.5	4/3.5
	4.13	Lifting Speed(Unload/Load)	m/s	0.101/0.095	0.101/0.095	0.101/0.095	0.101/0.092	0.101/0.092
	5.1	Decnet Speed(Unload/Load)	m/s	0.096/0.112	0.096/0.112	0.096/0.112	0.096/0.115	0.096/0.115
	5.2	Max. Climbing Ability (Unload/Load)	％	6/5	6/5	6/5	6/4.5	6/4.5
	5.3	Brake Type		Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
Motor,Charger	6.1	Driving Motor	kw	0.75	0.75	0.75	0.75	0.75
	6.2	Lifting Motor	kw	2.2	2.2	2.2	2.2	2.2
	6.3	Battery Type		Lead Acid	Lead Acid	Lead Acid	Lead Acid	Lead Acid
	6.4	Battery Vol./Capacity	V/Ah	2×12V/80Ah	2×12V/80Ah	2×12V/80Ah	2×12V/80Ah	2×12V/80Ah
	6.5	Charger	V/A	24V/10A	24V/10A	24V/10A	24V/10A	24V/10A
Other	7.1	Control Model		DC	DC	DC	DC	DC
The data is for reference only, and the details shall be subject to the actual vehicle.
